Product Details:
Payment & Shipping Terms:
|

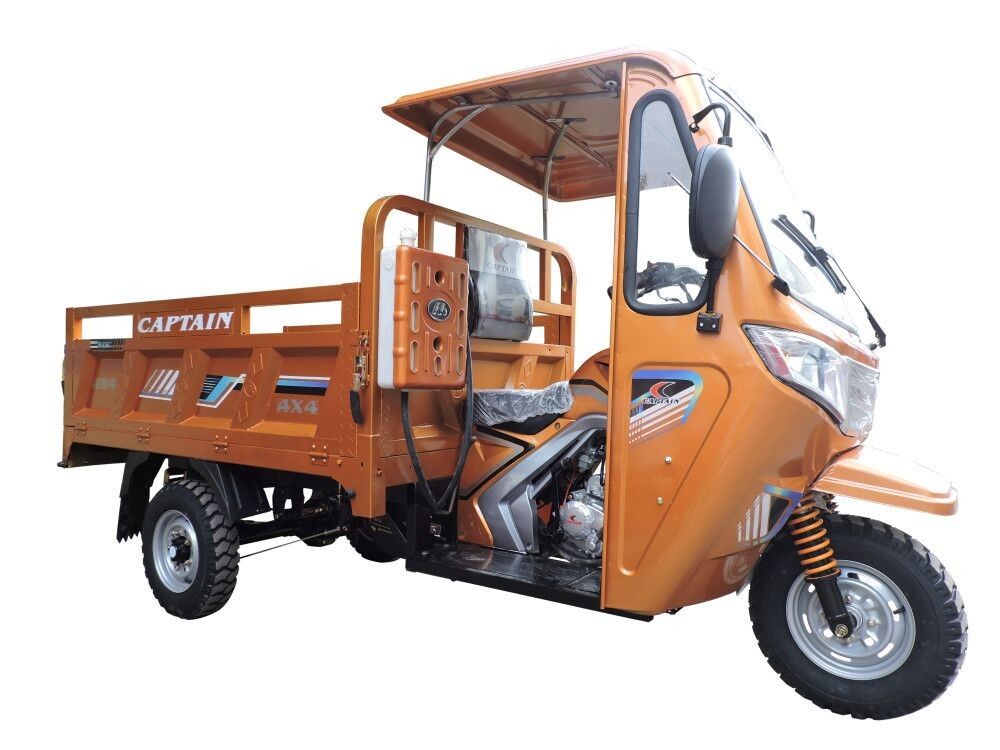

| Product Name: | Shaft Drive Cargo Motor Tricycle | Displacement: | 151 - 200cc |
|---|---|---|---|
| Driving Type: | Motorized | Use For: | Cargo |
| Body Type: | Open | Battery: | 12v 120ah |
| Loading Capacity: | More Than 2000kg | Size: | 1700*1250mm |
| High Light: | Shaft Drive Tricycle Cargo Truck,Open Body Tricycle Cargo Truck,200cc Tricycle Cargo Truck |
||
| Technical Details: | |
| Model: | HH200ZH |
| Engine Type: | 4 Stroke, single cylinder, water-cooled |
| Displacement(ml): | 197 |
| Compression ratio: | 9.2:1 |
| Max. power & rotating speed: | 10.6kw/7500 r/min±300 r/min |
| Rated .power & rotating speed: | 10.0kw/7500r/min±300r/min |
| Max. torque & rotating speed: | 13.5N.m/6500r/min±225r/min |
| Idle speed: | 1400rpm |
| Ignition: | CDI |
| Fuel: | RQ-90 |
| Dimension (L*W*H): | 3400*1300*1360 |
| Net weight (kg): | 350 |
| Rated Max. load (kg): | 1000 |
| Brake (F/R): | Drum/Drum |
| Starting system: | Electrical/Manual pull |
| Tire size (F/R): | 5.00-12 |
| Transmission: | Shaft |
| Ground clearance (mm): | 180 |
| Rated Max.speed (km/h): | 65 |
| Fuel Consumption (L/100km): | 3.8 |
| Advantages: |
Most economical and pratical model. Loading more than 2000Kgs.
More suitable for: Retails; Express; Carry heavy cargos, Farming use, etc.
Good appearance, good quality with reasonable price.
Changable accessories options to meet your real demand. |
Quick Details
Package:
SKD,CKD AS PER CUSTOMER REQUIREMENTS
1. Payment term?
A: T/T or L/C. Other ways are also can be considered.
2. Delivery time?
A: 15-20 days.
Since we produce the big chassis and cargo box by ourselves, our factory can ensure quickest delivery time. Normally we can delivery within 20 days after receiving the deposit.
3. MOQ?
A: One 20ft container of loading about 15-20 units.
4. What's your warranty term?
A: We normally offer 1% free spare parts for after sale service.
5.Are there any Service center ?
A:We have service center in Africa. Since we have warehouse there, it is more convenient for u to see sample tricycle. What's more, we can handle assembly and provide trainings for your workers in time.
