150CC Three Wheel Cargo Motorcycle / Electric Passenger Tricycle With Roof

China 150CC Three Wheel Cargo Motorcycle / Electric Passenger Tricycle With Roof supplier
150CC Three Wheel Cargo Motorcycle / Electric Passenger Tricycle With Roof supplier 150CC Three Wheel Cargo Motorcycle / Electric Passenger Tricycle With Roof supplier 150CC Three Wheel Cargo Motorcycle / Electric Passenger Tricycle With Roof supplier 150CC Three Wheel Cargo Motorcycle / Electric Passenger Tricycle With Roof supplier

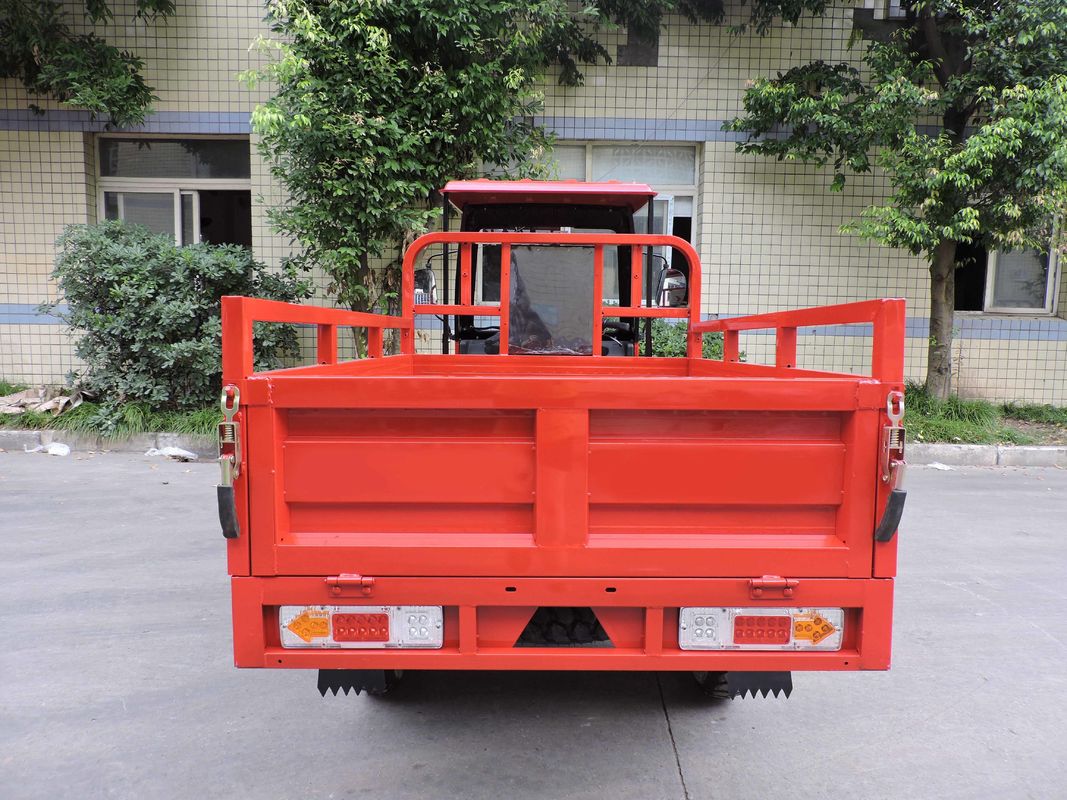

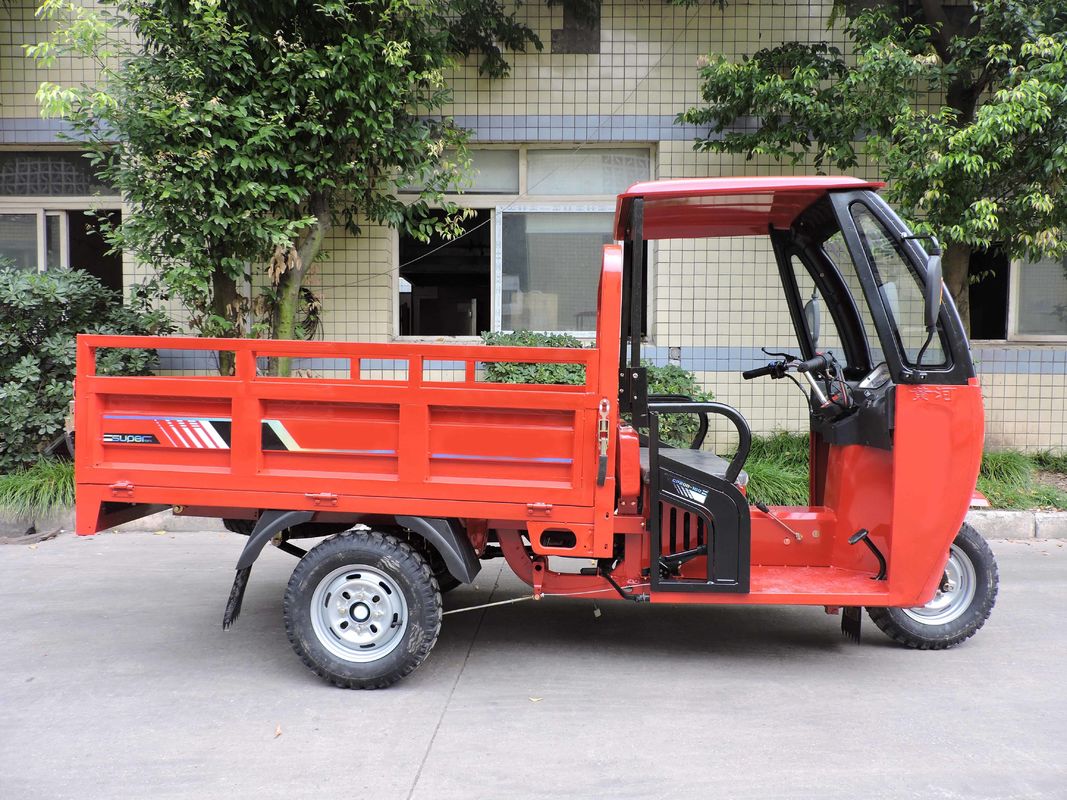

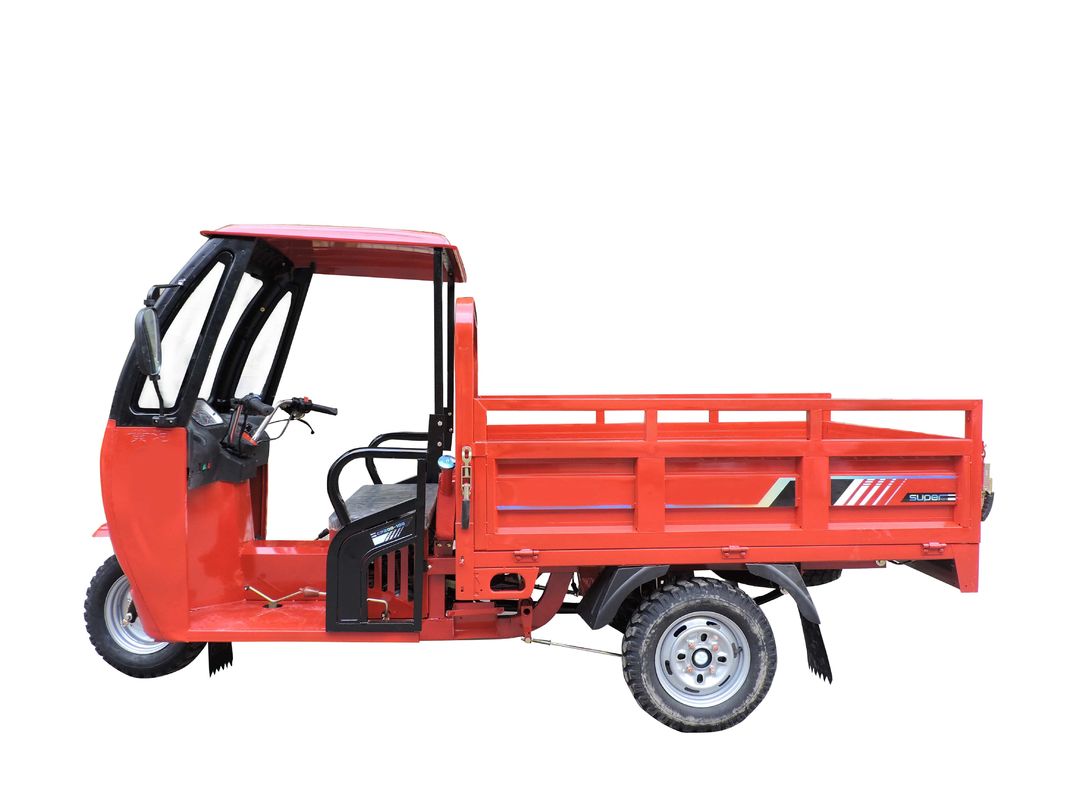

Large Image :  150CC Three Wheel Cargo Motorcycle / Electric Passenger Tricycle With Roof

Product Details:

Place of Origin: Chongqing, China (Mainland)
Brand Name: Huanghe
Certification: CCC;ISO9001:2008
Model Number: HH200ZH-10Q

Payment & Shipping Terms:

Minimum Order Quantity: 40 Unit/Unit
Packaging Details: CKD and SKD packing method
Delivery Time: 25 Working days
Payment Terms: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Supply Ability: 6000 units per Month
Contact Now
Detailed Product Description
Name: Tricycle Three Wheel Motorcycle Driving Type: Motorized
Displacement: 151 - 200cc Body Type: Open
Size: 3000*1250*1360 Color: Orange,red,yellow,blue
High Light:

cargo tricycle motorcycle

,

chinese cargo trike

tricycle three wheel motorcycle quick detail:



  • Specification:150cc
  • Engine Type: 4 Stroke, single-cylinder, air-cooled
  • Starting system: Electrical/Manual pull
  • box: tipper cargo box
  • color: orange or custom made



most popular model in the Africa market, simple appearance with cheap price.





tricycle three wheel motorcycle Specification:



cargo tricycle for adults Specification
  200cc
Engine Type: 4 Stroke, single cylinder, air-cooled
Displacement(ml): 197
Compression ratio: 9:1
Max. power rotating speed: 10.6kw/9000 r/min±300 r/min
Rated .power rotating speed: 9.5kw/9000r/min±300r/min
Max. torque rotating speed: 13.5.0N.m/7500r/min±225r/min
Idle speed: 1420rpm
Ignition: CDI
Fuel: RQ-90
Dimension (L*W*H): 3000*1250*1360
net weight (kg): 260
Max load (kg): 300
Brake (F/R): Drum/Drum
Starting system: Electrical/Manual pull
Tire size (F/R): 4.5-12
chasis: 40*80mm
Transmission: Shaft
Ground clearance (mm): 180
Wheelbase (mm): 1970
light: square head light.
mirrors: plastic mirrors.
box: tipper cargo box.
shock absorber: special european shock absorber
Loading Qty(40HQ): 50 pcs
other big footrester.
big back rester.
common rear axle.
options: big tool box. car rear axle. spare tire, jack





acid pickling and phosphating bath





Acid pickling and phosphating process strengthen lacquer adhesion, making the lacquer bright and wear-resistant. electrophoresis dipping process paint,non-corrosion ability is outstanding, ensure color durability.



Striking gently can not break the lacquer



burning sun can not destroy the lacquer







Cargo box workshop





With the help of folding machine, lath machine and trigger squeeze, we improve our work effictive.





Adjusting air intake and exhaust accurately to arrive at national standard and reduce gasoline consumption.



According to the customer's finger, optimize some parts such as kick starter, the handlebar can provide comfortable driving.



Researching and developing a new engine bracket reduce vibration and prolong its life.







Packging





Normally, our tricycles take SKD / CKD and carton packaging. Different parts with different packaging methods. If you have special requirements, please mention that in advance. Please see our main packaging methods as following:





Transport



Cooperation with reputable and substantial transport company ensure customer deserve commodity on time.







our other advantages:



Two factories, meet all kinds of requirement



Factory outlet, provide the lowest price



High quality engine, ensure super loading ability and easy  cope with mountain road



Cargo box, designed and produced through advanced technology process
