Product Details:
Payment & Shipping Terms:
|
| Use For: | Cargo | Driving Type: | Motorized |
|---|---|---|---|
| Displacement: | 151 - 200cc | Body Type: | Open |
| Size: | 3500*1400*1600mm | Battery: | 12V9A |
| Color: | As Per Your Requirement | Loading Capacity: | 800Kg-1500KG |
| High Light: | chinese 3 wheel motorcycle,chinese cargo trike |
||
Quick Details:
Standard Specification
| Model | HH150ZH-4A |
| Cargo dimension(L*W) | 1700*1250mm |
| Engine type | single cylinder,four stroke,air cooled |
| Displacement(ml) | 150cc |
| Max power | 9.0kw |
| Max torque | 11N.m |
| Ignition | CDI |
| Net weight(kg) | 300 |
| Max load(kg) | more than 3000kg |
| Brake(F/R) | drum/drum |
| starting system | electric/kick |
| tire size | 5.00-12 |
| Transmission | shaft |
| Battery | 12v9a |
| loading qty(40HQ) | 48 sets with CKD packing method |
Main features
Feature of Accessories
|
Engine |
1. type:air cooled; water cooled; air and water cooled 2. displacement:150cc;200cc;250cc;300cc low speed,high power, large torque |
|
Cargo box |
1. size: as per your requirement 2. type:electric-coating and pickling phosphating technology to protect it from rust. good overall performance ,run with no bumpy sound. carry heavy goods.electro-coating and pickling phosphating technology to protect it from rust |
|

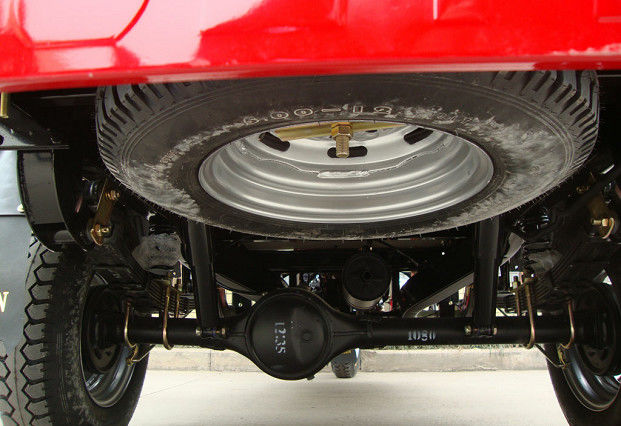

Rear axle |
1. type:normal rear axle---used for flat road condition,loading light goods; 2. car normal rear axle---used for downslope condition,loading heavier goods; 3.boosting rear axle---used for grade climbing;loading heavy goods, strong and durable |
|
Tire size |
4.50-12; 5.00-12 |
|
Front shock absorber |
Big Spring Type,Double spring Type |
|
Steel spring type |
6 pcs, 7pcs,8 pcs, 10pcs |
|
Additional parts |
1.front hood cover; 2.damper; 3.fan; 4.MP3; 5.spare tyre; 6.jack; 7.tail light cover; 8.rear canavas, etc. |
|
|
|
Packing and loading
SKD,CKD AS PER CUSTOMER REQUIREMENTS
1. Payment term?
A: T/T Other ways are also can be considered.
2. Delivery time?
A: 15-20 days. urgent order is acceptable.
3. MOQ?
A: Any quantities are okay. But we suggest that you can buy a container of it, which is more cost-effective.
4. Package infomation?
A: CKD/SKD,completely-knock-down packing method or Semi-knocked down .
5. What's your warranty term?
A: We offer different warranty time for different products. Pls contact us to get detail information.
6: Will you deliver right goods as we ordered? How can I trust you?
A: Yes, we will. We belive that honesty and credit is the key to build a nice and long-term business relationship.
8.Service center in any place?
A:We have service center in Africa to help you develop business and make money.Since we have storehouse in there, it is more convenient for u to see sample tricycle.What's more, we can solve assemble and quality problem in time.
