Place of Origin:
Chongqing, China (Mainland)
Brand Name:
HUANGHE,DOKA
Certification:
CCC;ISO9001
Model Number:

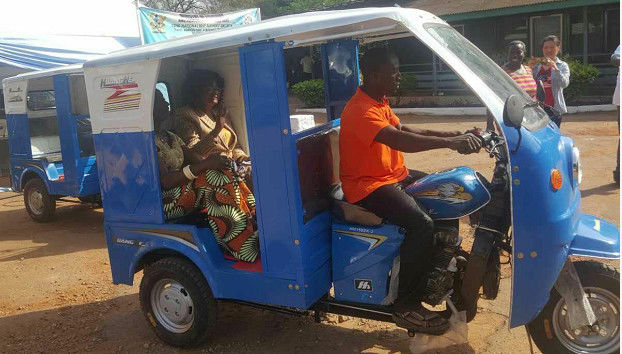

150ZH-H Four seats Tricycle
Quick Details:
A/Description:
B/ Recommend Reasons:
C/ Technical Specification:
Technical Specification: | |
Model: | HH150ZK-2 |
Engine Type: | 4 Stroke, single cylinder, water-cooled |
Displacement(ml): | 144.6 |
Compression ratio: | 9.0:1 |
Max. power & rotating speed: | 9.0kw/7500 r/min±300 r/min |
Rated .power & rotating speed: | 8.5kw/7500r/min±300r/min |
Max. torque & rotating speed: | 10 N.m/6500r/min±225r/min |
Idle speed: | 1400rpm |
Ignition: | CDI |
Fuel: | RQ-90 |
Passenger seat box Dimension (L*W): | 1300*1150m |
Net weight (kg): | 400 |
Rated Max. load (person): | 4 |
Brake (F/R): | Drum/Drum |
Starting system: | Electrical/Manual pull |
Tire size (F/R): | 4.50-12 |
Transmission: | Shaft |
Ground clearance (mm): | 180 |
Rated Max.speed (km/h): | 65 |
Color Option: | Blue,yellow |
Optional Choice:
Packging
Normally, our tricycles take SKD / CKD and carton packaging. Different parts with different packaging methods. If you have special requirements, please mention that in advance.
