Shaft Drive 3 Wheel Cargo Motor Tricycle Open Body Type 1700 * 1250mm High Loading Capacity

China Shaft Drive 3 Wheel Cargo Motor Tricycle Open Body Type 1700 * 1250mm High Loading Capacity supplier
Shaft Drive 3 Wheel Cargo Motor Tricycle Open Body Type 1700 * 1250mm High Loading Capacity supplier Shaft Drive 3 Wheel Cargo Motor Tricycle Open Body Type 1700 * 1250mm High Loading Capacity supplier Shaft Drive 3 Wheel Cargo Motor Tricycle Open Body Type 1700 * 1250mm High Loading Capacity supplier Shaft Drive 3 Wheel Cargo Motor Tricycle Open Body Type 1700 * 1250mm High Loading Capacity supplier Shaft Drive 3 Wheel Cargo Motor Tricycle Open Body Type 1700 * 1250mm High Loading Capacity supplier

Large Image :  Shaft Drive 3 Wheel Cargo Motor Tricycle Open Body Type 1700 * 1250mm High Loading Capacity

Product Details:

Place of Origin: Chongqing, China (Mainland)
Brand Name: HUANGHE
Certification: CCC.ISO9001
Model Number: HH200ZH-20Q

Payment & Shipping Terms:

Packaging Details: CKD and SKD packing method
Delivery Time: 25 Working days
Payment Terms: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Supply Ability: 6000 units per Month
Contact Now
Detailed Product Description
Displacement: 151 - 200cc Driving Type: Motorized
Use For: Cargo Body Type: Open
Battery: 12v 120ah Loading Capacity: More Than 2000kg
Size: 1700*1250mm Color: As Per Your Requirement
High Light:

chinese three wheel motorcycle

,

tricycle with cargo box

Shaft Drive Motorized 3 Wheel Cargo Motorcycle with Steel Frame and Car Axle for West Africa Market




Recommend Advantages:

  • Most economical and pratical model. Loading more than 2000Kgs.
  • More suitable for: Retails; Express; Carry heavy cargos, Farming use, etc.
  • Good appearance, good quality with reasonable price.
  • Changable accessories options to meet your real demand.



Quick Details

  • Brake:good high brake performance.
  • Engine:low speed , high power, large torque.Zongshen / Lifang engine with good performance and quality
  • Rear axle:the technology is the same as car rear axle, very stronger and durablr.
  • Cargo box: electro-coating and pickling phosphating technology to protect cargo box from rust.With high strength steel structure to fully resist the impact while loading.
  • All our products get through the CCC and ISO9001 CERTIFICATE.




Technical Details:
Model:HH200ZH

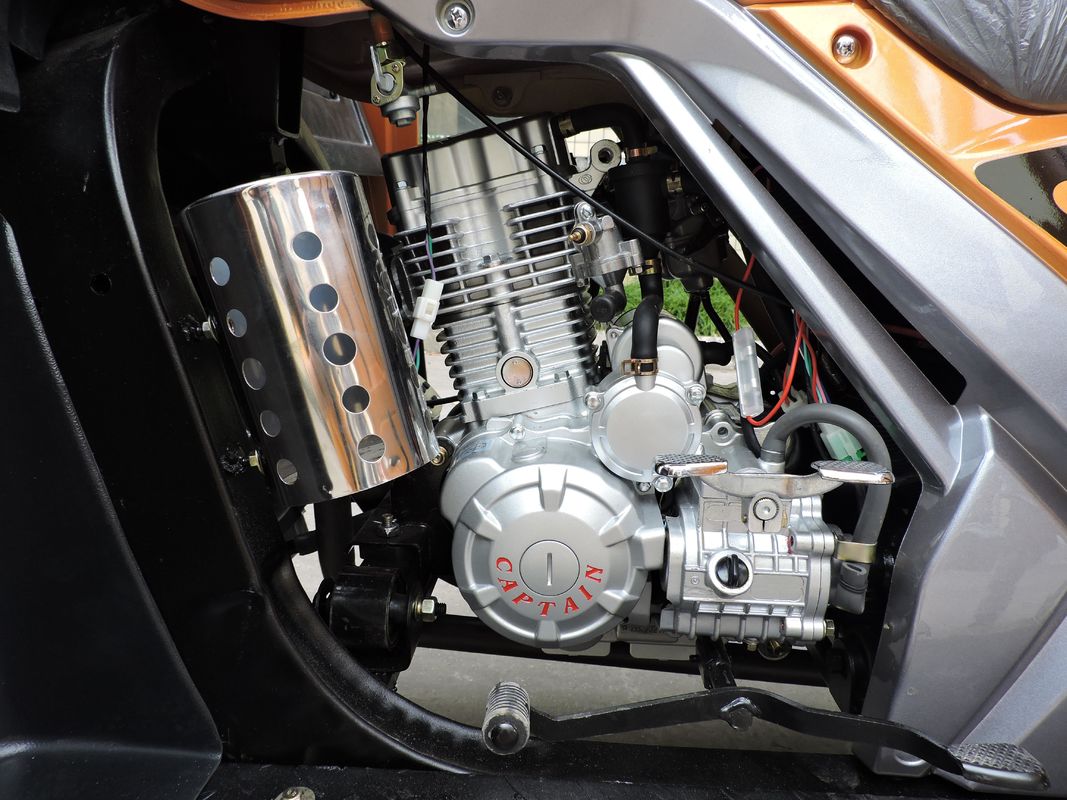

Engine Type:4 Stroke, single cylinder, water-cooled
Displacement(ml):197
Compression ratio:9.2:1
Max. power & rotating speed:10.6kw/7500 r/min±300 r/min
Rated .power & rotating speed:10.0kw/7500r/min±300r/min
Max. torque & rotating speed:13.5N.m/6500r/min±225r/min
Idle speed:1400rpm
Ignition:CDI
Fuel:RQ-90
Dimension (L*W*H):3400*1300*1360
Net weight (kg):350
Rated Max. load (kg):1000
Brake (F/R):Drum/Drum
Starting system:Electrical/Manual pull
Tire size (F/R):5.00-12
Transmission:Shaft
Ground clearance (mm):180
Rated Max.speed (km/h):65
Fuel Consumption (L/100km):3.8



Package:
SKD,CKD AS PER CUSTOMER REQUIREMENTS
Shaft Drive 3 Wheel Cargo Motor Tricycle Open Body Type 1700 * 1250mm High Loading Capacity 0



FAQ


1. Payment term?
A: T/T or L/C.  Other ways are also can be considered.

2. Delivery time?
A: 15-20 days.
Since we produce the big chassis and cargo box by ourselves, our factory can ensure quickest delivery time. Normally we can delivery within 20 days after receiving the deposit.

3. MOQ?
A: One 20ft container of loading about 15-20 units.

4. What's your warranty term?
A: We normally offer 1% free spare parts for after sale service.

5.Are there any Service center ?
A:We have service center in Africa. Since we have warehouse there, it is more convenient for u to see sample tricycle. What's more, we can handle assembly and provide trainings for your workers in time.
