Place of Origin:
CHONGQING,CHINA
Brand Name:
HUANGHE,DOKA,Edicanfo
Certification:
EEC,CCC,ISO,
Model Number:
HH200ZH-3
200CC Motorized Fuel Army Color 3 Wheel Motorcycle for Merchants and Farmers in Africa
A/Description:
B/ Recommend Reasons:
C/Models can be designed according to market requirments:

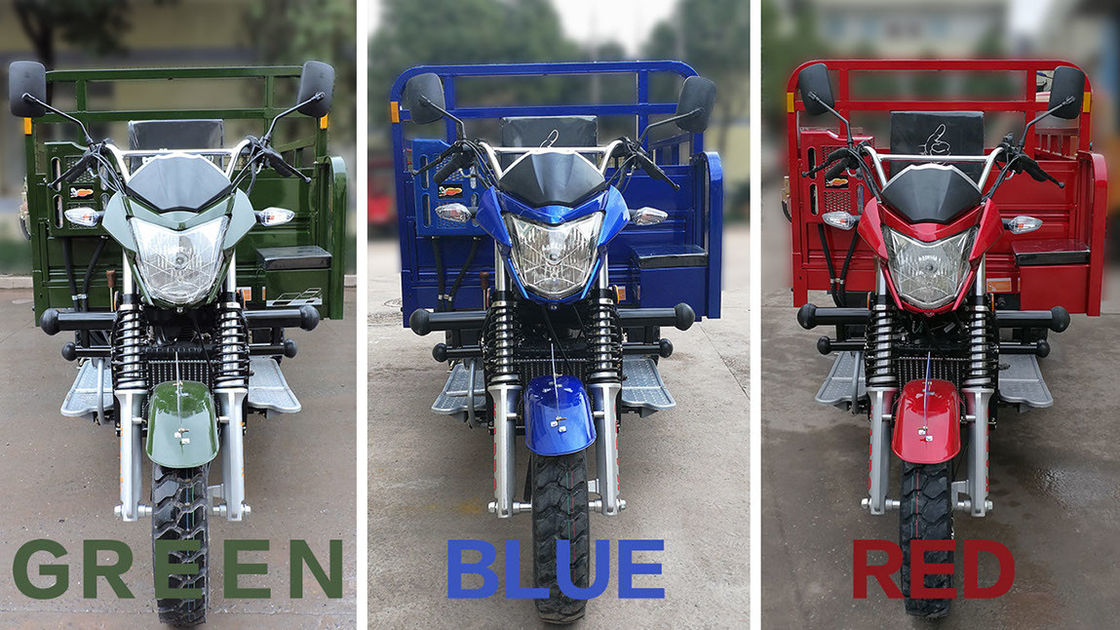

1.Color options: | |||
Blue,Army Green,Red etc. | |||
2.Engine options: | |||
Water cooled Engine :150cc,200cc,250cc | |||
3.Cargo box options: | |||
1.25m*1.7m/1.25m*1.8m/1.3m*2.0m | |||
4.Rear axle options: | |||
Auto rear axle ,Boosting rear axle etc. |
D/ Technical Parameter:
Technical Specification: | |
Model: | HH200ZH-3 |
Engine Type: | 4 Stroke, single cylinder, water-cooled |
Displacement(ml): | 197 |
Compression ratio: | 9.2:1 |
Max. power & rotating speed: | 10.6kw/7500 r/min±300 r/min |
Rated .power & rotating speed: | 10.0kw/7500r/min±300r/min |
Max. torque & rotating speed: | 13.5N.m/6500r/min±225r/min |
Idle speed: | 1400rpm |
Ignition: | CDI |
Fuel: | RQ-90 |
Dimension (L*W*H): | 3300*1300*1360 |
Net weight (kg): | 350 |
Rated Max. load (kg): | 1000 |
Brake (F/R): | Drum/Drum |
Starting system: | Electrical/Manual pull |
Tire size (F/R): | 5.00-12 |
Transmission: | Shaft |
Ground clearance (mm): | 180 |
Rated Max.speed (km/h): | 65 |
Fuel Consumption (L/100km): | 3.5 |
D/ CKD Packing and loading :
