Product Details:
Payment & Shipping Terms:
|
Material: | Iron,steel,plastic | Displacement: | 200cc,250cc,300cc |
---|---|---|---|
Transimission: | Shaft | Color: | Red,Blue,Orange,Green |
Battery: | 9A/18A | Loading Capaclity: | 1500 KG |
Max Speed: | 65 Km/h | Brake System: | Drum/Drum |
Packing Method: | CKD | Fuel Consumption: | 3.8L/100km |
High Light: | chinese three wheel motorcycle,cargo delivery bicycle |
200CC Water Cooling Fuel Cargo Motor Tricycle with Strengthed Cargo for Heavy Loading
A/Description:
B/ Recommend Reasons:
C/ Technical Specification:
Technical Parameter: | |

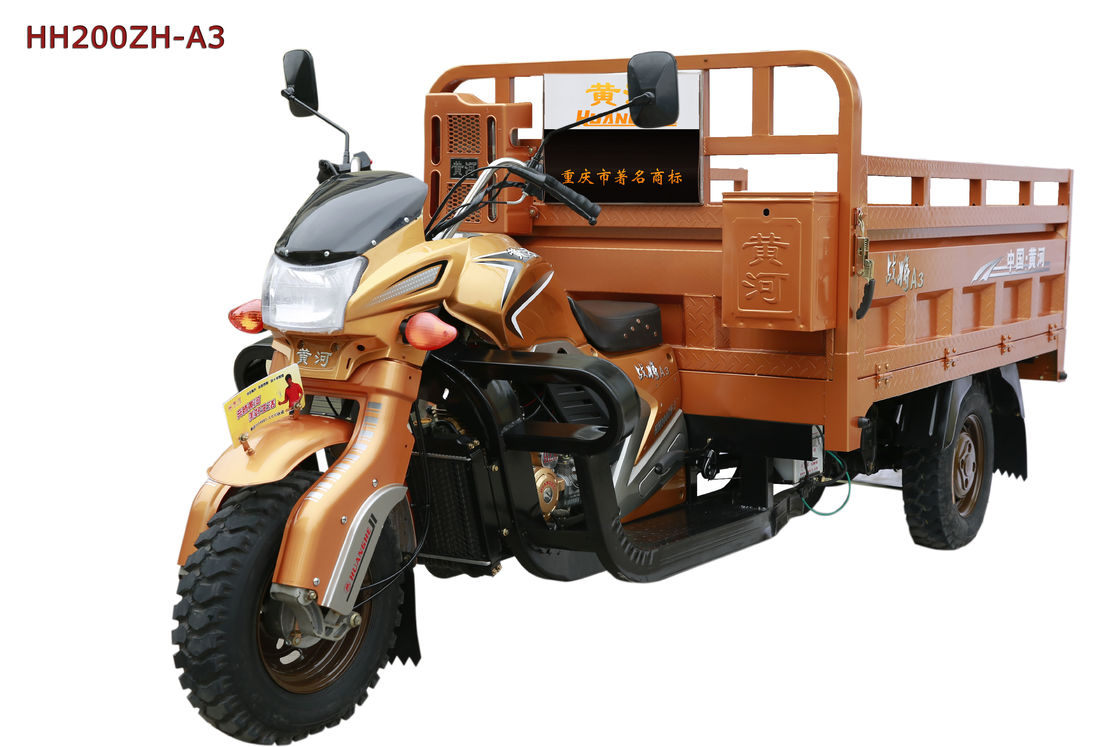

Model: | HH200ZH-A3 |
Engine Type: | 4 Stroke, single cylinder, water-cooled |
Displacement(ml): | 197 |
Compression ratio: | 9.2:1 |
Max. power & rotating speed: | 10.6kw/7500 r/min±300 r/min |
Rated .power & rotating speed: | 10.0kw/7500r/min±300r/min |
Max. torque & rotating speed: | 13.5N.m/6500r/min±225r/min |
Idle speed: | 1400rpm |
Ignition: | CDI |
Fuel: | RQ-90 |
Dimension (L*W*H): | 3300*1300*1360 |
Net weight (kg): | 380 |
Rated Max. load (kg): | 1000 |
Brake (F/R): | Drum/Drum |
Starting system: | Electrical/Manual pull |
Tire size (F/R): | 5.00-12 |
Transmission: | Shaft |
Ground clearance (mm): | 180 |
Rated Max.speed (km/h): | 65 |
Fuel Consumption (L/100km): | 3.8 |
D/ CKD Packing and loading :
Packing and loading Method is also very important for cargo motor tricycle.If pack and load well and there's no waste for container space, one 40HQ can load much more qty to save shipping and tax cost for buyers.So CKD packing for tricycle is recommended first.
