Product Details:
Payment & Shipping Terms:
|
| Use For: | Cargo | Driving Type: | Motorized |
|---|---|---|---|
| Displacement: | 200CC | Body Type: | Open |
| Size: | 1800*1350 | Color: | Red/orange/blue/green |
| Max Speed: | 65km/h | Power: | 9.0KW |
| Engine: | 4 Cylinders | Battery: | 12V9AH |
| Braking System: | Drum Brake | Fuel Type: | 90# |
| Tire: | 5.00-21/5.00-12 | Cargo Dimension: | 2.0*1.3 |
| High Light: | three wheel cargo tricycle,chinese tricycle motorcycle |
||
| Technical Specification: | |
| Model: | HH200ZH-B |
| Engine Type: | 4 Stroke, single cylinder, water-cooled |
| Displacement(ml): | 197 |
| Compression ratio: | 9.2:1 |
| Max. power & rotating speed: | 10.6kw/7500 r/min±300 r/min |
| Rated .power & rotating speed: | 10.0kw/7500r/min±300r/min |
| Max. torque & rotating speed: | 13.5N.m/6500r/min±225r/min |
| Idle speed: | 1400rpm |
| Ignition: | CDI |
| Fuel: | RQ-90 |
| Dimension (L*W*H): | 3400*1300*1360 |
| Net weight (kg): | 350 |
| Rated Max. load (kg): | 1000 |
| Brake (F/R): | Drum/Drum |
| Starting system: | Electrical/Manual pull |
| Tire size (F/R): | 5.00-12 |
| Transmission: | Shaft |
| Ground clearance (mm): | 180 |
| Rated Max.speed (km/h): | 65 |
| Fuel Consumption (L/100km): | 3.8 |

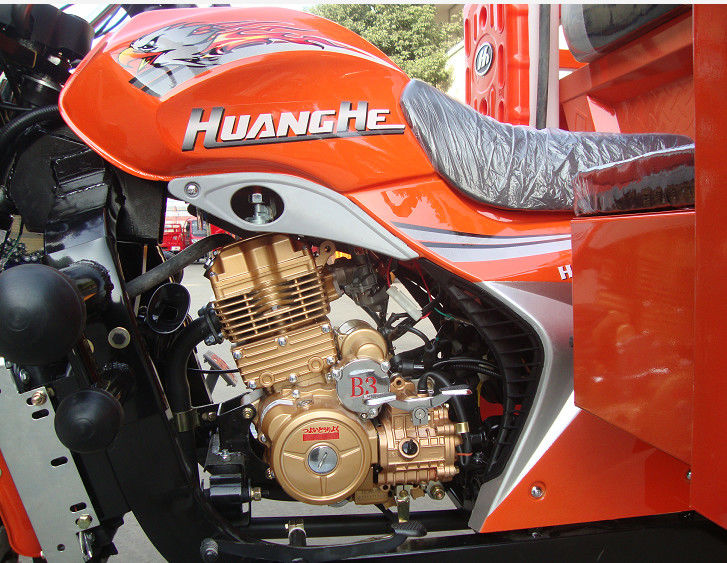

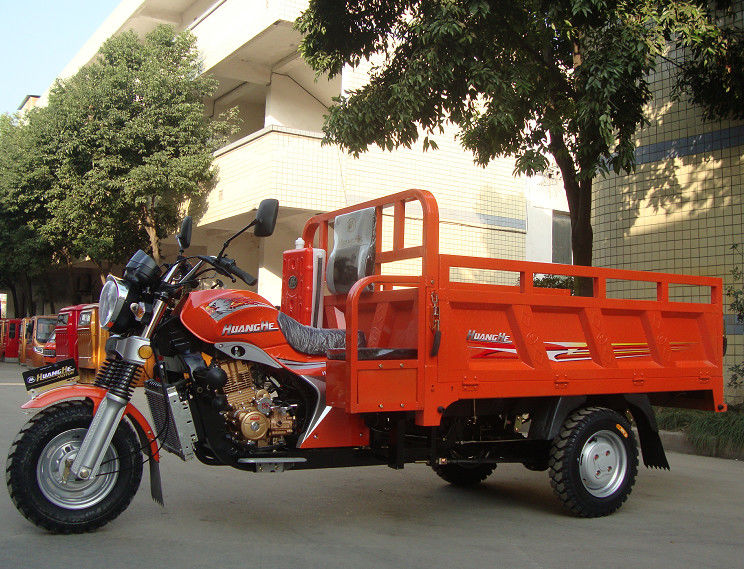

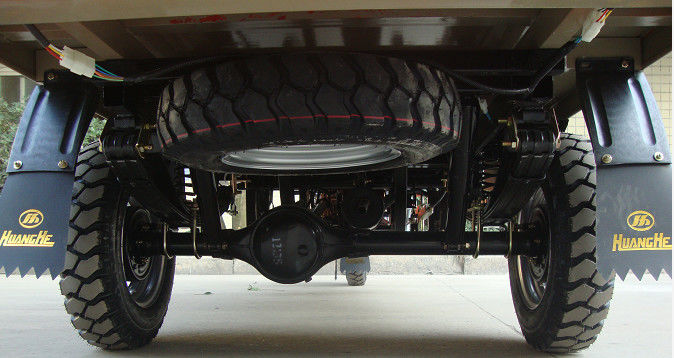

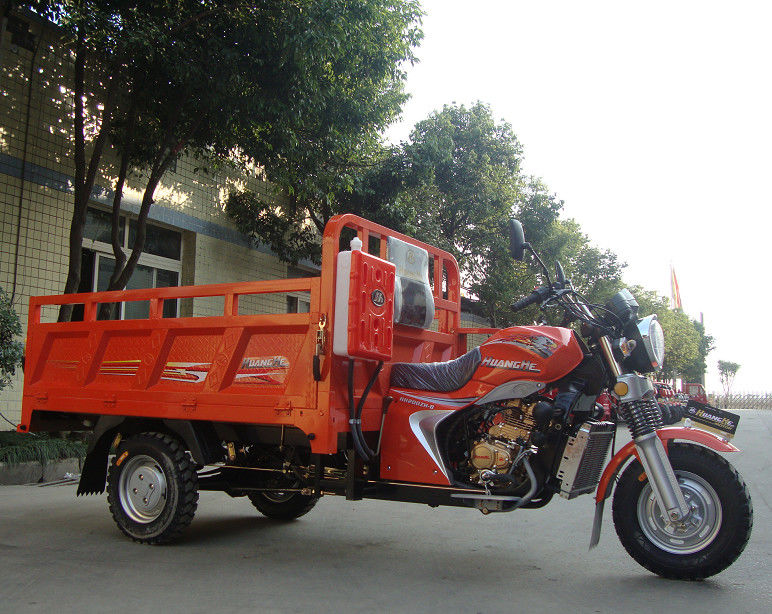

Different Angle View:
Packging and Loading
Normally, our tricycles take SKD / CKD packaging Method. Different parts with different packing methods. If you have special requirements, please mention that in advance.
