Product Details:
Payment & Shipping Terms:
|
| Use For: | Cargo | Driving Type: | Motorized |
|---|---|---|---|
| Displacement: | 111 - 150cc | Body Type: | Open |
| Size: | 3500*1400*1600mm | Color: | As Per Your Requirement |
| Loading Capacity: | 450KG | Engine Type: | Single-cylinder/ 4-stroke /-water-cooled |
| Net Weight: | 300kg | Brake: | Drum |
| Tire Size(F/R): | 4.50-12 | ||
| High Light: | chinese 3 wheel motorcycle,chinese cargo trike |
||

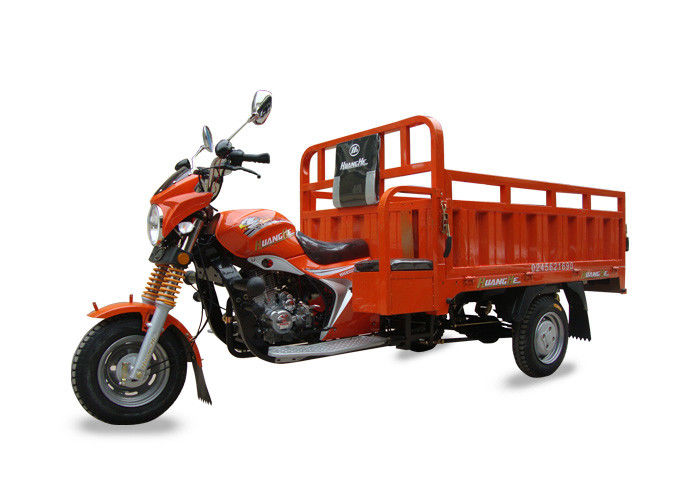

Standard specification
| Model | HH150ZH |
| Cargo dimension(L*W) | 1700*1250mm |
| Engine type | single cylinder,four stroke,air cooled |
| Displacement(ml) | 150cc |
| Max power | 9.0kw |
| Max torque | 11N.m |
| Ignition | CDI |
| Net weight(kg) | 300 |
| Max load(kg) | 450 |
| Brake(F/R) | drum/drum |
| starting system | electric/kick |
| tire size | 4.5-12 |
| Transmission | shaft |
| Battery | 12v9a |
| loading qty(40HQ) | 50 sets with CKD packing method |
Main features
1. Most economical and pratical model. Loading 800Kgs.
More suitable for: Retails; Express; Carry heavy cargos, Farming use, etc.
2. Good appearance, good quality with reasonable price.
3. Changable accessories options to meet your real demand.
Feature of accessories
|
Engine |
1. type:air cooled; water cooled; air and water cooled 2. displacement:150cc;200cc;250cc;300cc low speed,high power, large torque |
|
Cargo box |
1. size: as per your requirement 2. type:electric-coating and pickling phosphating technology to protect it from rust. good overall performance ,run with no bumpy sound. carry heavy goods.electro-coating and pickling phosphating technology to protect it from rust |
|

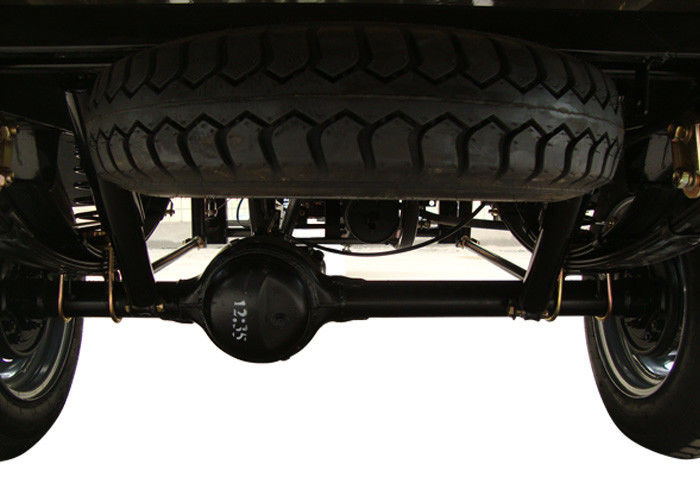

Rear axle |
1. type:normal rear axle---used for flat road condition,loading light goods; car normal rear axle---used for downslope condition,loading heavier goods; boosting rear axle---used for grade climbing;loading heavy goods strong and durable |
|
Tire size |
4.5-12; 5-12 |
|
Front shock absorber |
|
|
Steel spring type |
|
|
Additional parts |
1.front hood cover; 2.damper; 3.fan; 4.MP3; 5.spare tyre; 6.jack; 7.tail light cover; 8.rear canavas, etc. |
|
|
|
Packing and loading
SKD,CKD AS PER CUSTOMER REQUIREMENTS
1. Payment term?
A: T/T Other ways are also can be considered.
2. Delivery time?
A: 15-20 days. urgent order is acceptable.
3. MOQ?
A: 20 Set. But we suggest that you can buy a container of it, which is more cost-effective.
4. Package infomation?
A: CKD/SKD ;20GP container : 20sets ;40GP container: 54sets.
5. What's your warranty term?
A: We offer different warranty time for different products. Pls contact us to get detail information.
6: Will you deliver right goods as we ordered? How can I trust you?
A: Yes, we will. We belive that honesty and credit is the key to build a nice and long-term business relationship.
7. Price?
A: We are manufacture and trading company with competitive price, distinct appearence.
8. Service center in Africa?
A: We have service center in Africa to help you develop business and make money.Since we have storehouse in there, it is more convenient for u to see sample tricycle.What's more, we can solve assemble and quality problem in time.
