Place of Origin:
Chongqing, China (Mainland)
Brand Name:
HUANGHE
Certification:
CCC;ISO9001
Model Number:
HH150ZH-B
Fan for heating dissipation

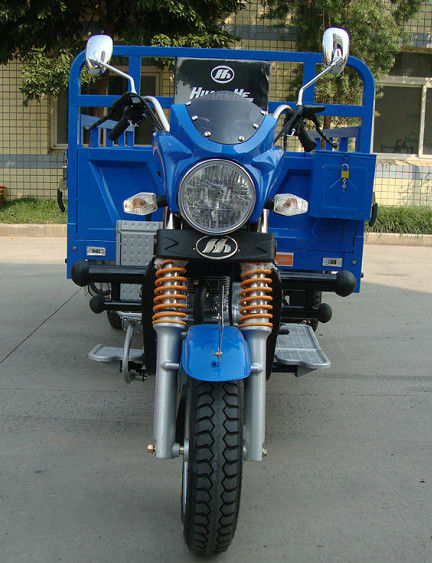

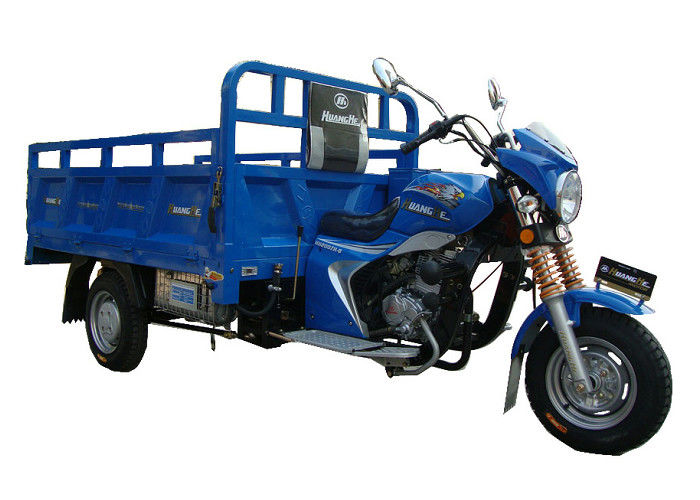

Tricycle Cargo Truck is the most popular model in Africa market,simple appearance with cheap price.
| Technical Paramter: | |
| Model: | HH150ZH |
| Engine Type: | 4 Stroke, single cylinder, air-cooled |
| Displacement(ml): | 144.6 |
| Compression ratio: | 9.0:1 |
| Max. power & rotating speed: | 9.0kw/7500 r/min±300 r/min |
| Rated .power & rotating speed: | 8.5kw/7500r/min±300r/min |
| Max. torque & rotating speed: | 11N.m/6500r/min±225r/min |
| Ignition: | CDI |
| Fuel: | RQ-90 |
| Dimension (L*W*H): | 3200*1250*1360 |
| Net weight (kg): | 300 |
| Rated Max. load (kg): | 800 |
| Brake (F/R): | Drum/Drum |
| Starting system: | Electrical/Manual pull |
| Tire size (F/R): | 4.50-12 |
| Transmission: | Shaft |
| Ground clearance (mm): | 180 |
| Rated Max.speed (km/h): | 60 |
| Fuel Consumption (L/100km): | 3.5 |
CKD Packing method of this Three wheeler motorized Tricycle as below:
| Configuration can be designed according to customer's requirements | |||
| 1.Color options: | |||
| Blue,Orange,Red | |||
| 2.Engine options: | |||
| Water cooled Engine : 200cc,250cc | |||
| 3.Cargo box options: | |||
| 1.25m*1.7m/1.25m*1.8m/1.3m*2.0m | |||
| 4.Rear axle options: | |||
| Auto rear axle ,Boosting rear axle etc. | |||
| 5.Front shock absorber optional: | |||
| 43mm front shock absorber, front shock absorber with damper, double front shock absorber,etc. | |||
| 6.The tyres optional: | |||
| 5.00-12,5.50-13 | |||
| 7.Addtional Parts for choice : | |||
| Sparetyre, Jack, Fan, Rear absorber, MP3, Radio, Glasses fender, Tent, seat. etc, |
Factory direct sales with favourable price, good quality, sincerely service.
