Place of Origin:
Chongqing, China (Mainland)
Brand Name:
huanghe
Certification:
CCC; ISO9001
Model Number:
HH150ZH-A

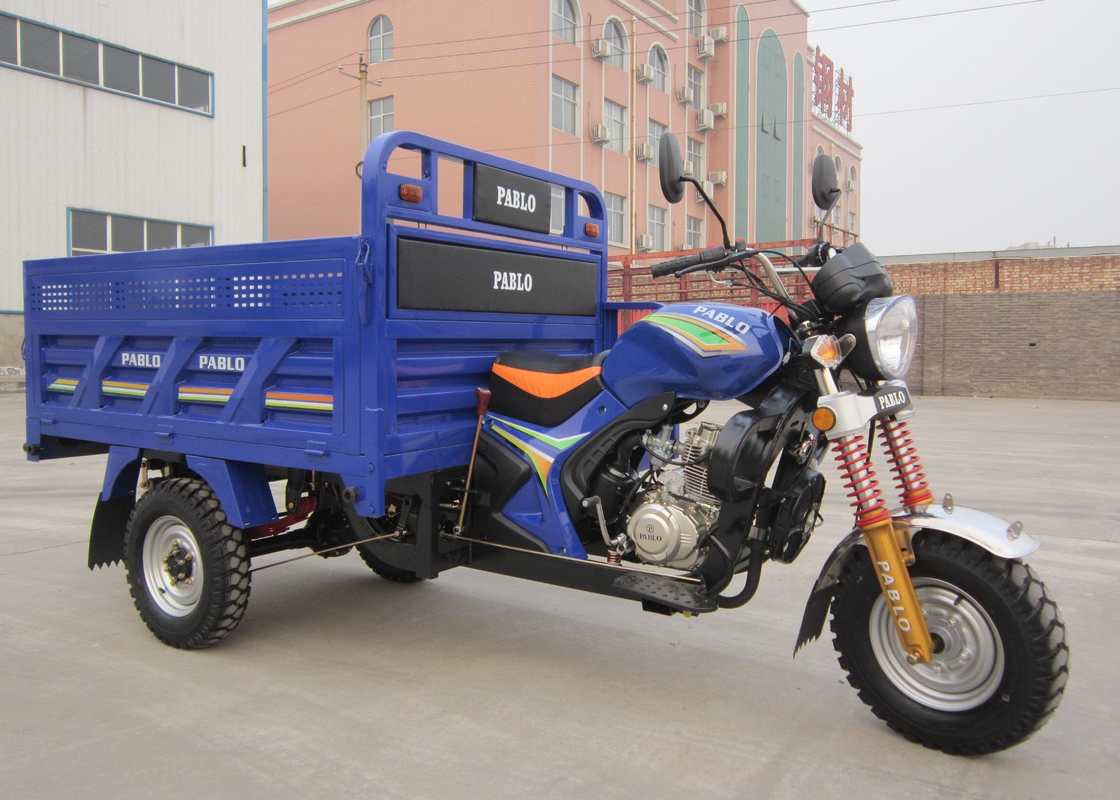

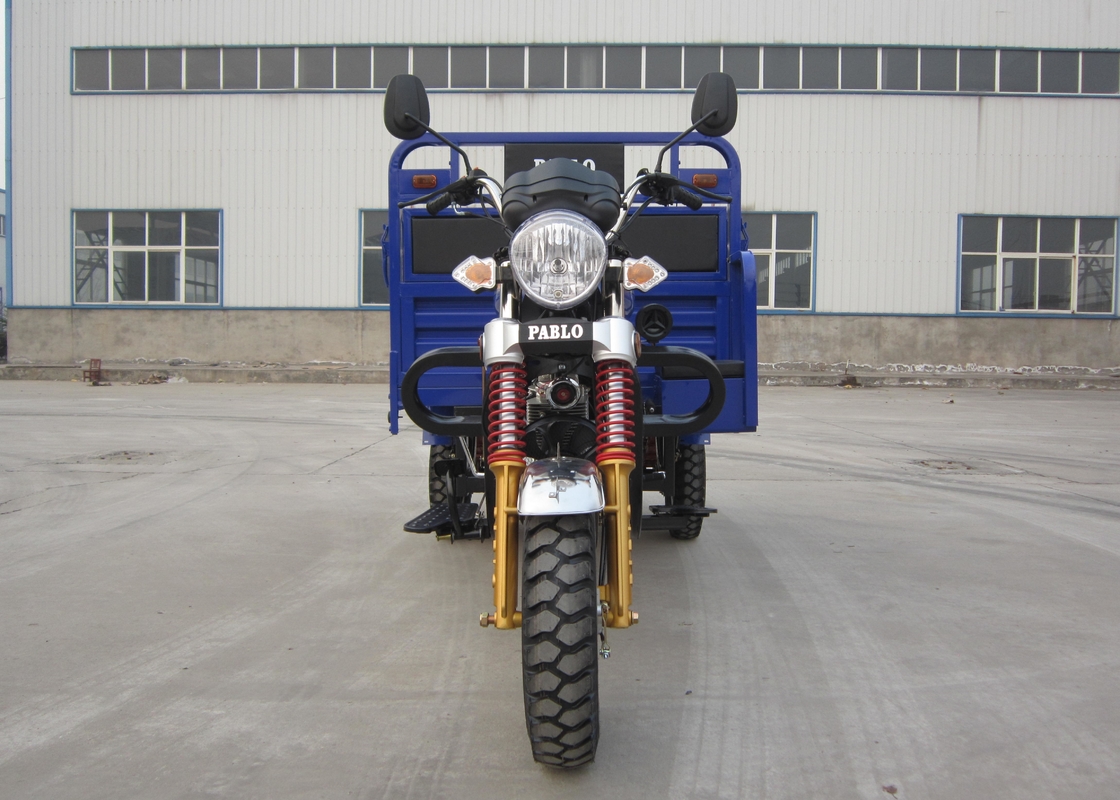

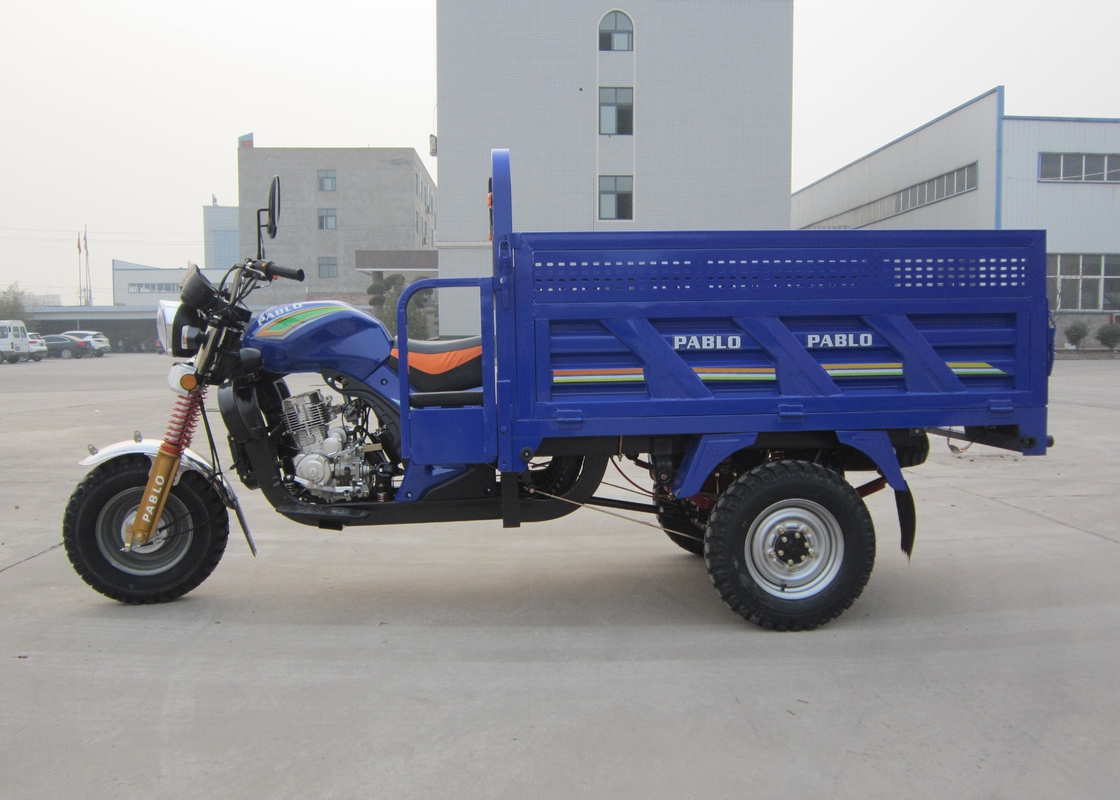

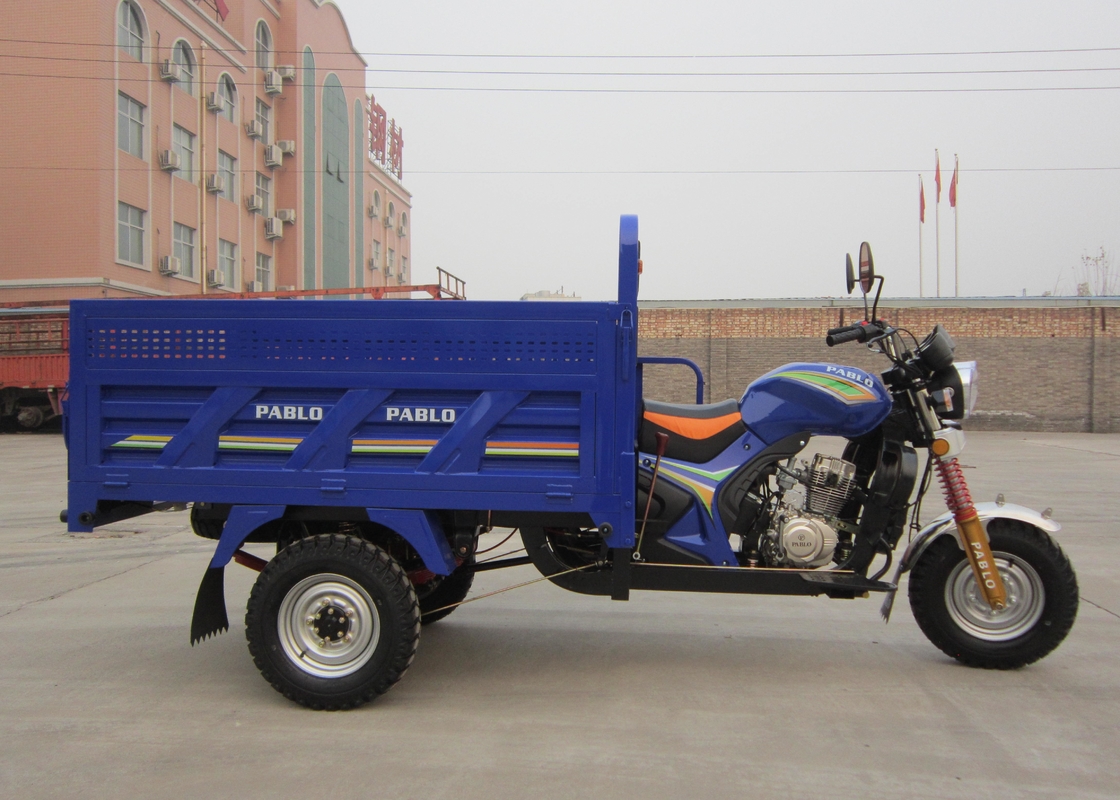

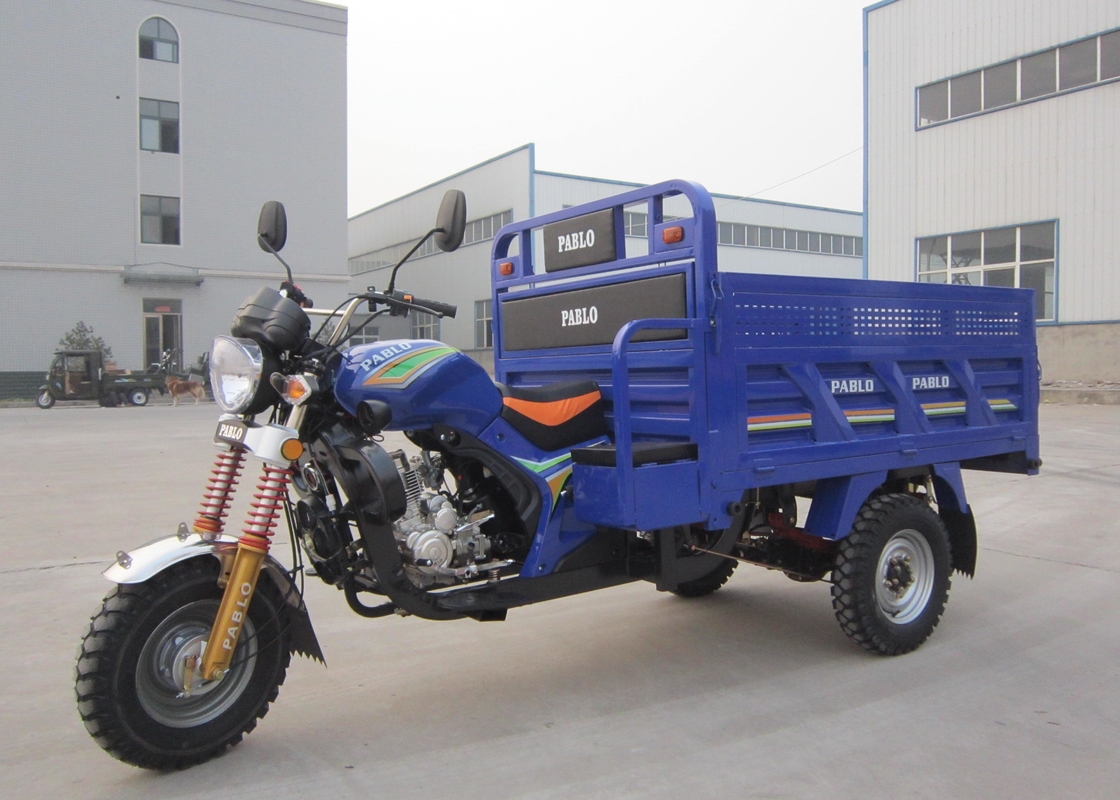

3 wheel Cargo tricycles for heaving loading under rough roads.
Three same wheels with new style fuel tank and F. shock absorber
the most popular model in the Africa market, simple appearance with cheap price.
| cargo tricycle for adults Specification: | |
| Specification: | 150cc |
| Engine Type: | 4 Stroke, single-cylinder, air-cooled |
| Displacement(ml): | 144.6 |
| Compression ratio: | 9:1 |
| Max. power rotating speed: | 9.0kw/9000 r/min±300 r/min |
| Rated .power rotating speed: | 8.5kw/9000r/min±300r/min |
| Max. torque rotating speed: | 11.0N.m/7500r/min±225r/min |
| Idle speed: | 1420rpm |
| Ignition: | CDI |
| Fuel: | RQ-90 |
| Dimension (L*W*H): | 3600*1250*1360 |
| net weight (kg): | 260 |
| Max load (kg): | 300 |
| Brake (F/R): | Drum/Drum |
| Starting system: | Electrical/Manual pull |
| Tire size (F/R): | 4.5-12 |
| chassis: | 40*80mm |
| Transmission: | Shaft |
| Ground clearance (mm): | 180 |
| Wheelbase (mm): | 1970 |
| light: | square headlight. |
| mirrors: | plastic mirrors. |
| box: | tipper cargo box. |
| shock absorber: | special European shock absorber |
| Loading Qty(40HQ): | 50 pcs |
| other | big footrester. |
| big back rester. | |
| common rear axle. | |
| options: | big toolbox. car rear axle. spare tire, jack |
acid pickling and phosphating bath
Acid pickling and phosphating process strengthen lacquer adhesion, making the lacquer bright and wear-resistant.
electrophoresis dipping process paint, non-corrosion ability is outstanding, ensure color durability.
Striking gently can not break the lacquer
burning sun can not destroy the lacquer
Cargo box workshop
With the help of the folding machine, lath machine and trigger squeeze,
we improve our work effectively.
Experiment room
Adjusting air intake and exhaust accurately to arrive at national standard and reduce gasoline consumption.
According to customers' finger, optimize some parts such as kick starter, the handlebar can provide comfortable driving.
Researching and developing new engine bracket reduce vibration and prolong its life.
Packing
Normally, our tricycles take SKD / CKD and carton packaging.
Different parts with different packaging methods.
If you have special requirements, please mention that in advance.
Please see our main packaging methods as following:
