Place of Origin:
Chongqing, China (Mainland)
Brand Name:
huanghe
Certification:
CCC; ISO9001
Model Number:
HH200ZH-B

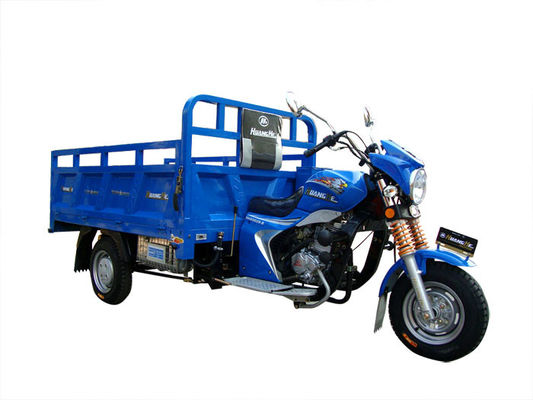

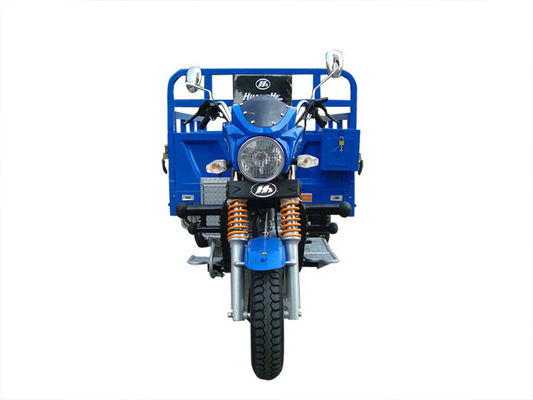

3 wheeler Cargo motorcycles for heaving loading under rough roads.
Three same wheels with new style fuel tank and Front shock absorber.
Technical Details of Most popular cargo tricycle in Africa market,simple appearance with cheap price:
| Specification:200cc | |||||
| Engine Type: 4 Stroke, single cylinder, air-cooled | |||||
| Displacement(ml):197 | |||||
| Compression ratio:9.2:1 | |||||
| Max. power & rotating speed: 10.6kw/7500 r/min±300 r/min | |||||
| Rated .power & rotating speed:10.0kw/7500r/min±300r/min | |||||
| Max. torque & rotating speed:13.5N.m/6500r/min±225r/min | |||||
| Idle speed: 1400rpm | |||||
| Ignition: CDI | |||||
| Fuel: RQ-90 | |||||
| Dimension (L*W*H):3000*1250*1360 | |||||
| Net weight (kg):320 | |||||
| Rated Max. load (kg): 350 | |||||
| Brake (F/R): Drum/Drum | |||||
| Starting system: Electrical/Manual pull | |||||
| Tire size (F/R): 4.50-12 | |||||
| Transmission: Shaft | |||||
| Ground clearance (mm):180 | |||||
| Wheelbase (mm): 1970 | |||||
| Rated Max.speed (km/h): 60 |
Factory acid pickling and phosphating
Acid pickling and phosphating process strenghen larquer adhesion ,making the larquer brigh and wear-resistant. electrophoresis dipping process paint ,non-corrsion ability is outstanding ,ensure color durability.
Striking gently can not break the lacquer
buring sun can not destroy lacquer
Cargo box workshop
With the help of floding machine ,lath machine and trigger squeeze , we improve our work effictive.
Experiment room
Adjusting air intake and exhaust accurately to arrive national standerd and reduce gasoline consumption.
According to customer's finger ,optimise some parts such as kick starter ,handle bar can provide a comfortable driving .
Researching and developng new engine bracket reduce viberation and prolong its life.
Packging
Normally, our tricycles take SKD / CKD and carton packaging. Different parts with different packaging methods. If you have special requirements, please mention that in advance. Please see our main packaging methods as following:
Transport
Cooperation with reputable and substantial transport company esure customer deserve commodity on time.
Tricycle vary fro size to color
No matter what color ,appearance ,size ,configuration you want ,please contact us.
our other advantages:
Two factories , meet all kinds of requirement
Factory outlet ,provide lowest price
High qualiy engine, ensure super loading ability and easy cope with moutain road
Cargo box, designed and producted through andvanced technology process
