Place of Origin:
Chongqing, China (Mainland)
Brand Name:
huanghe
Certification:
ccc;iso9001
Model Number:
150ZH-H

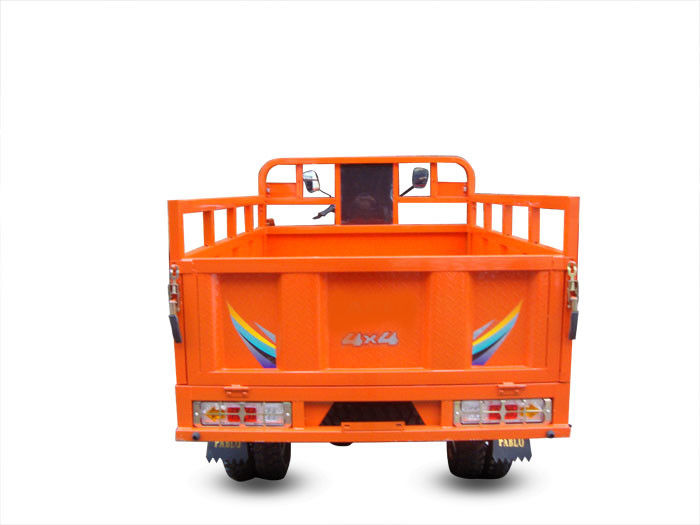

3 wheel Cargo tricycles for heaving loading under rough roads. Three same wheels with new style fuel tank and F. shock absorber
most popular model in Africa market,simple appearance with cheap price.
| cargo tricycle for adults Specification: | |
| Specification: | 150cc |
| Engine Type: | 4 Stroke, single cylinder, air-cooled |
| Displacement(ml): | 144.6 |
| Compression ratio: | 9:1 |
| Max. power rotating speed: | 9.0kw/9000 r/min±300 r/min |
| Rated .power rotating speed: | 8.5kw/9000r/min±300r/min |
| Max. torque rotating speed: | 11.0N.m/7500r/min±225r/min |
| Idle speed: | 1420rpm |
| Ignition: | CDI |
| Fuel: | RQ-90 |
| Dimension (L*W*H): | 3000*1250*1360 |
| net weight (kg): | 260 |
| Max load (kg): | 300 |
| Brake (F/R): | Drum/Drum |
| Starting system: | Electrical/Manual pull |
| Tire size (F/R): | 4.5-12 |
| chasis: | 40*80mm |
| Transmission: | Shaft |
| Ground clearance (mm): | 180 |
| Wheelbase (mm): | 1970 |
| light: | square head light. |
| mirrors: | plastic mirrors. |
| box: | tipper cargo box. |
| shock absorber: | special european shock absorber |
| Loading Qty(40HQ): | 50 pcs |
| other | footrester. |
| big back rester. | |
| common rear axle. | |
| options: | big tool box. car rear axle. spare tire, jack |
Factory
acid pickling and phosphating bath
Acid pickling and phosphating process strenghen larquer adhesion ,making the larquer brigh and wear-resistant. electrophoresis dipping process paint ,non-corrsion ability is outstanding ,ensure color durability.
Striking gently can not break the lacquer
buring sun can not destroy lacquer
Cargo box workshop
With the help of floding machine ,lath machine and trigger squeeze , we improve our work effictive.
Experiment room
Adjusting air intake and exhaust accurately to arrive national standerd and reduce gasoline consumption.
According to customer's finger ,optimise some parts such as kick starter ,handle bar can provide a comfortable driving .
Researching and developng new engine bracket reduce viberation and prolong its life.
Packging
Normally, our tricycles take SKD / CKD and carton packaging. Different parts with different packaging methods. If you have special requirements, please mention that in advance. Please see our main packaging methods as following:
Transport
Cooperation with reputable and substantial transport company esure customer deserve commodity on time.
Tricycle vary fro size to color
No matter what color ,appearance ,size ,configuration you want ,please contact us.
our chinese 3 wheel motorcycle other advantages:
Two factories , meet all kinds of requirement
Factory outlet ,provide lowest price
High qualiy engine, ensure super loading ability and easy cope with moutain road
Cargo box, designed and producted through andvanced technology process
