Place of Origin:
Chongqing, China (Mainland)
Brand Name:
huanghe
Certification:
ccc;iso9001
Model Number:
150ZH-H

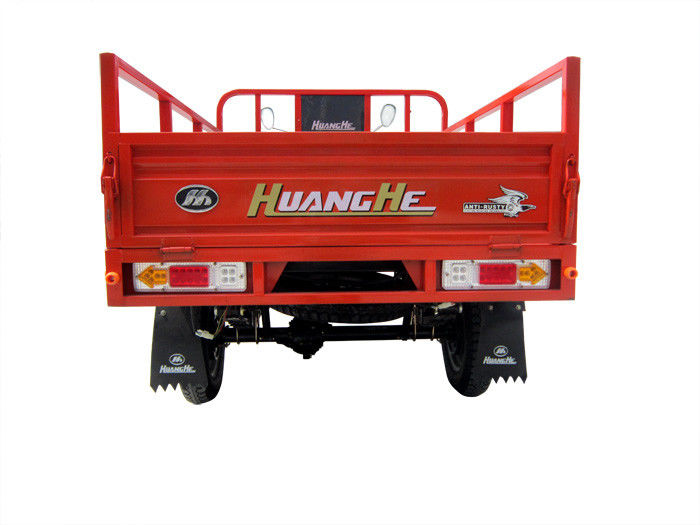

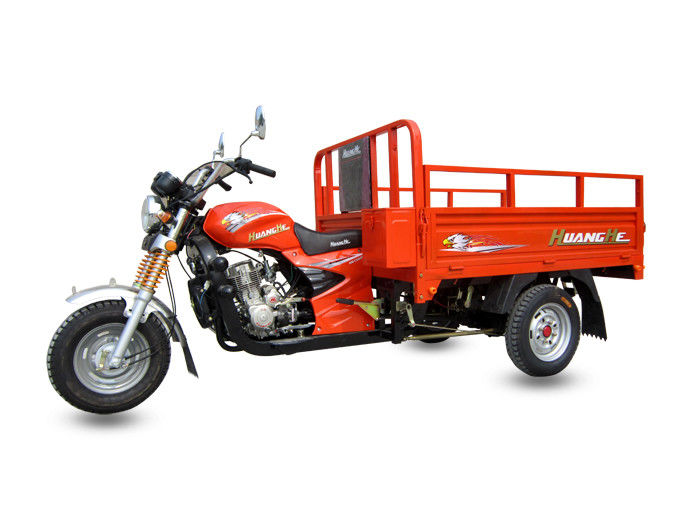

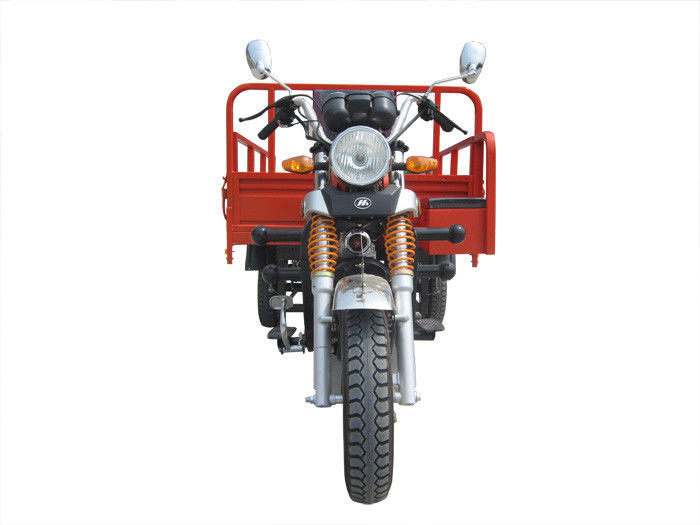

3 wheel Cargo tricycles for heaving loading under rough roads. Three same wheels with new style fuel tank and F. shock absorber
most popular model in Africa market,simple appearance with cheap price.
3 Wheel Cargo Motorcycle Specification: | |
Specification: | 150cc |
Engine Type: | 4 Stroke, single cylinder, air-cooled |
Displacement(ml): | 144.6 |
Compression ratio: | 9:1 |
Max. power rotating speed: | 9.0kw/9000 r/min±300 r/min |
Rated .power rotating speed: | 8.5kw/9000r/min±300r/min |
Max. torque rotating speed: | 11.0N.m/7500r/min±225r/min |
Idle speed: | 1420rpm |
Ignition: | CDI |
Fuel: | RQ-90 |
Dimension (L*W*H): | 3000*1250*1360 |
net weight (kg): | 260 |
Max load (kg): | 300 |
Brake (F/R): | Drum/Drum |
Starting system: | Electrical/Manual pull |
Tire size (F/R): | 4.5-12 |
chasis: | 40*80mm |
Transmission: | Shaft |
Ground clearance (mm): | 180 |
Wheelbase (mm): | 1970 |
light: | square head light. |
mirrors: | plastic mirrors. |
box: | tipper cargo box. |
shock absorber: | special european shock absorber |
Loading Qty(40HQ): | 50 pcs |
other | footrester. |
big back rester. | |
common rear axle. | |
options: | big tool box. car rear axle. spare tire, jack |
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
