Place of Origin:
Chongqing, China (Mainland)
Brand Name:
HUANGHE
Certification:
CCC;ISO9001

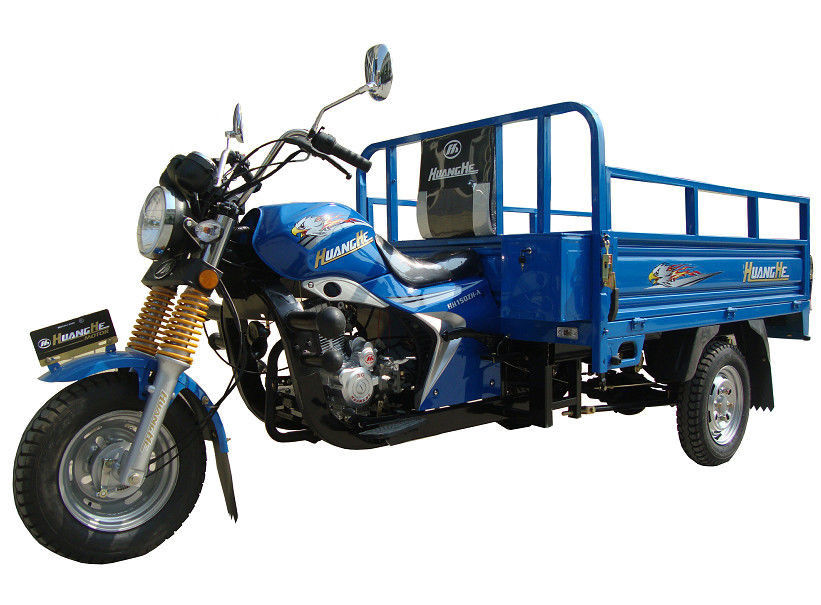

3 wheel Cargo tricycles for heaving loading under rough roads. Three same wheels with new style fuel tank and F. shock absorber
most popular model in Africa market,simple appearance with cheap price.
| 200cc 3 wheel tricycle for passenger Specification: | |
| Specification: | 200cc |
| Engine Type: | 4 Stroke, single cylinder, air-cooled |
| Displacement(ml): | 193.3 |
| Compression ratio: | 9.2:1 |
| Max. power rotating speed: | 10.35kw/9000 r/min±300 r/min |
| Rated .power rotating speed: | 10.25kw/9000r/min±300r/min |
| Max. torque rotating speed: | 13.5N.m/7500r/min±225r/min |
| Idle speed: | 1420rpm |
| Ignition: | CDI |
| Fuel: | RQ-90 |
| Dimension (L*W*H): | 3000*1250*1360 |
| net weight (kg): | 260 |
| Max load (kg): | 300 |
| Brake (F/R): | Drum/Drum |
| Starting system: | Electrical/Manual pull |
| Tire size (F/R): | 4.5-12 |
| chasis: | 40*80mm |
| Transmission: | Shaft |
| Ground clearance (mm): | 180 |
| Wheelbase (mm): | 1970 |
| light: | square head light. |
| mirrors: | plastic mirrors. |
| box: | tipper cargo box. |
| shock absorber: | special european shock absorber |
| Loading Qty(40HQ): | 50 pcs |
| other | big footrester. |
| big back rester. | |
| common rear axle. | |
| options: | big tool box. car rear axle. spare tire, jack, cabin |
Produt View
Factory View
acid pickling and phosphating bath
Acid pickling and phosphating process strengthen lacquer adhesion, making the lacquer bright and wear-resistant. electrophoresis dipping process paint,non-corrosion ability is outstanding, ensure color durability.
Striking gently can not break the lacquer
burning sun can not destroy the lacquer
Cargo box workshop
With the help of floding machine,lath machine and trigger squeeze , we improve our work effectively.
Adjusting air intake and exhaust accurately to arrive at national standard and reduce gasoline consumption.
According to customers' finger, optimize some parts such as kick starter, the handlebar can provide comfortable driving.
Researching and developing new engine bracket reduce vibration and prolong its life.
Packging
Normally, our tricycles take SKD / CKD and carton packaging. Different parts with different packaging methods. If you have special requirements, please mention that in advance. Please see our main packaging methods as following:
Transport
Cooperation with reputable and substantial transport company ensure customer deserve commodity on time.
Tricycle vary fro size to color
No matter what color, appearance ,size, configuration you want, please contact us.
our other advantages:
Two factories, meet all kinds of requirement
Factory outlet, provide the lowest price
High quality engine, ensure super loading ability and easy cope with mountain road
Cargo box, designed and producted through andvanced technology process
