Place of Origin:
CHONGQING,CHINA
Brand Name:
HUANGHE,DOKA
Certification:
CCC,ISO,
Model Number:
HH200ZH-C3

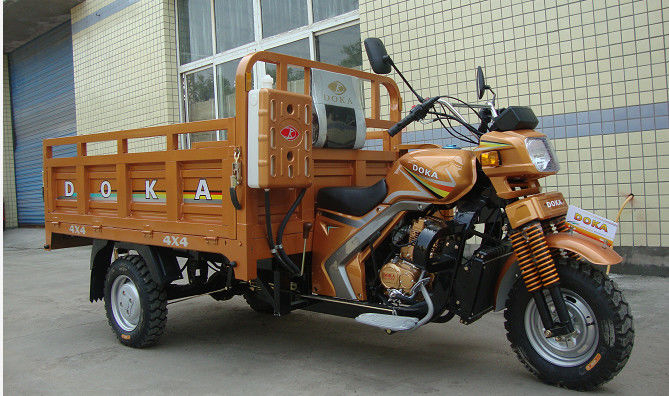

Gasoline Four stroke Motorized 3 Wheel Cargo Motorcycle with Heavy Loading Cargo Box For Hot Areas
A/Description:
B/ Recommend Reasons:
C/ Technical Specification:
Technical Parameter: | |
Model: | HH200ZH-C5 |
Engine Type: | 4 Stroke, single cylinder, water-cooled |
Displacement(ml): | 197 |
Compression ratio: | 9.2:1 |
Max. power & rotating speed: | 10.6kw/7500 r/min±300 r/min |
Rated .power & rotating speed: | 10.0kw/7500r/min±300r/min |
Max. torque & rotating speed: | 13.5N.m/6500r/min±225r/min |
Idle speed: | 1400rpm |
Ignition: | CDI |
Fuel: | RQ-90 |
Dimension (L*W*H): | 3600*1300*1360 |
Net weight (kg): | 380 |
Rated Max. load (kg): | 1500 |
Brake (F/R): | Drum/Drum |
Starting system: | Electrical/Manual pull |
Tire size (F/R): | 5.00-12 |
Transmission: | Shaft |
Ground clearance (mm): | 180 |
Rated Max.speed (km/h): | 65 |
Fuel Consumption (L/100km): | 4 |
D/ CKD Packing and loading :
The packing and loading Method is also very important for the cargo motor tricycle. If pack and load well and there's no waste for container space, one 40HQ can load much more qty to save shipping and tax cost for buyers. So CKD packing for tricycle is recommended first.
