Product Details:
Payment & Shipping Terms:
|
Driving Type: | Motorized | Displacement: | 200CC-250CC |
---|---|---|---|
Size: | 3700*1300*1390 | Fuel: | 90# Petrol |

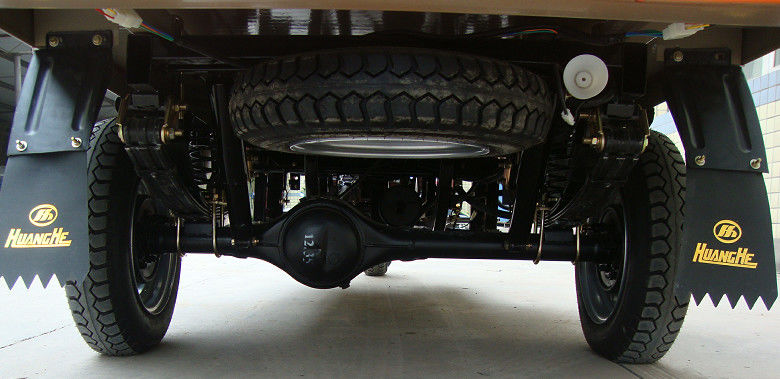

Rear Axle: | Differential Rear Axle | Driving: | Shaft Drive |
High Light: | Gasoline 200CC Cargo Tricycle,Open Driver Cabin Cargo Motorcycle,Shaft Drive Cargo Motorcycle |
Our Advantages:
Product Specifications:
Technical Details: | |
Model: | HH200ZH-3P |
Engine Type: | 4 Stroke, single cylinder, water-cooled |
Displacement(ml): | 197 |
Compression ratio: | 9.2:1 |
Max. power & rotating speed: | 10.6kw/7500 r/min±300 r/min |
Rated .power & rotating speed: | 10.0kw/7500r/min±300r/min |
Max. torque & rotating speed: | 13.5N.m/6500r/min±225r/min |
Idle speed: | 1400rpm |
Ignition: | CDI |
Fuel: | RQ-90 |
Dimension (L*W*H): | 3600*1350*1360 |
Net weight (kg): | 350 |
Max. load (kg): | 1500 |
Brake (F/R): | Drum/Drum |
Starting system: | Electrical/Manual pull |
Tire size (F/R): | 5.00-12 |
Transmission: | Shaft |
Ground clearance (mm): | 180 |
Rated Max.speed (km/h): | 65 |
Fuel Consumption (L/100km): | 4 |

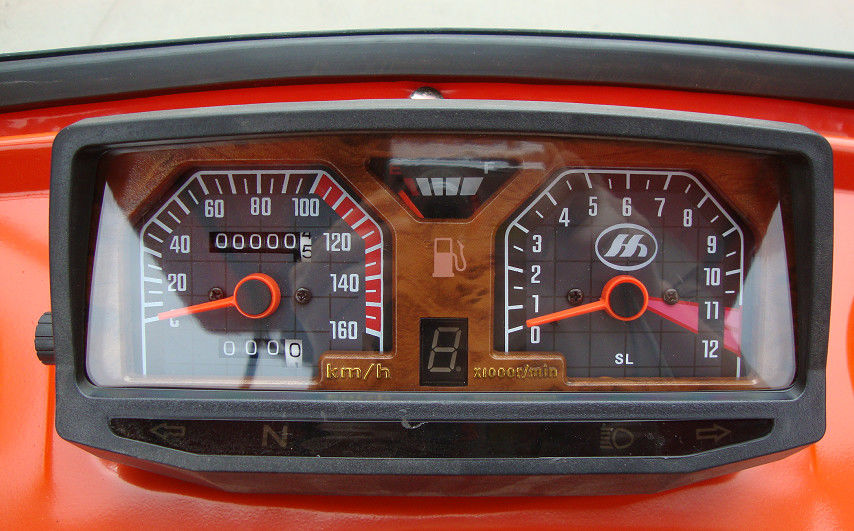

Three Wheel Motorcycle Delivery Van Cargo Trikes pictures of the Cabin speedometer:
Acid pickling and Electro Painting
Acid pickling and phosphating process strenghen wear-resistant.
Electrophoresis dipping process paint ,non-corrsion ability is outstanding ,ensure color durability.
Cargo box workshop
With the help of floding machine ,lath machine and trigger squeeze , we improve our work effictively.
Experiment room
Adjusting air intake and exhaust accurately to meet national standard and reduce gasoline consumption.
According to customer's body features and driving experince to choose suitable kick starter ,handle bar can provide a comfortable driving .
Researching and developng new engine bracket can reduce viberation and prolong its life.
Packging
Normally, our tricycles take SKD / CKD Packing Method.
If you have special requirements, please mention that in advance.
