Place of Origin:
CHONGQING,CHINA
Brand Name:
HUANGHE,DOKA
Certification:
CCC,ISO9001
Model Number:
DK200ZH

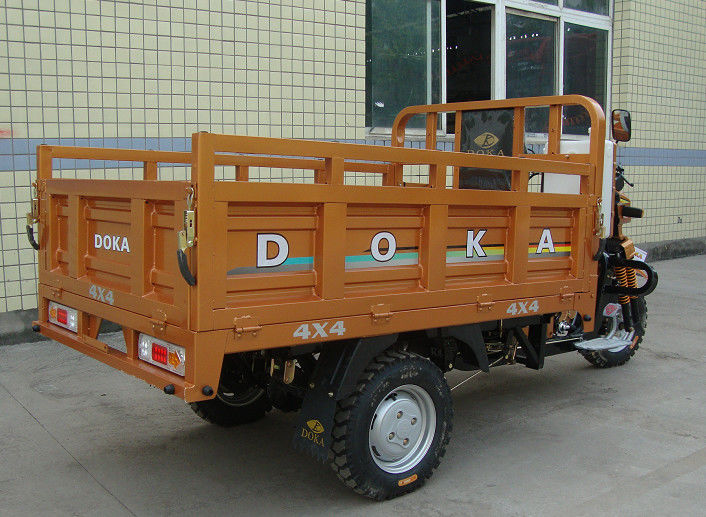

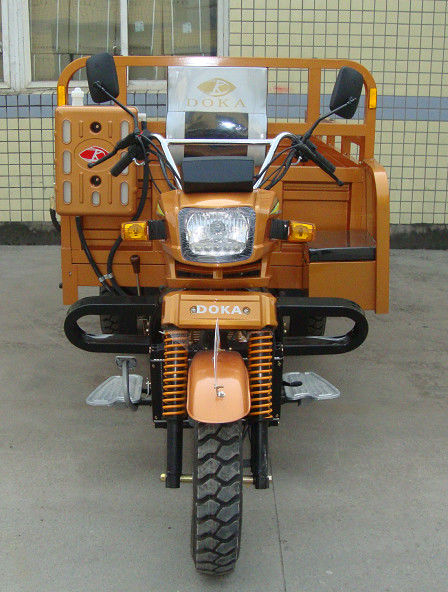

King Loader Gasoline Tricycle 3 Wheel Cargo Motorcycle with 200cc Water Cooling Engine For Africa
A/Description:
B/ Recommend Reasons:
C/ Technical Specification:
Technical Parameter: | |
Model: | DK200ZH |
Engine Type: | 4 Stroke, single cylinder, water-cooled |
Displacement(ml): | 197 |
Compression ratio: | 9.2:1 |
Max. power & rotating speed: | 10.6kw/7500 r/min±300 r/min |
Rated .power & rotating speed: | 10.0kw/7500r/min±300r/min |
Max. torque & rotating speed: | 13.5N.m/6500r/min±225r/min |
Idle speed: | 1400rpm |
Ignition: | CDI |
Fuel: | RQ-90 |
Dimension (L*W*H): | 3600*1300*1360 |
Net weight (kg): | 380 |
Rated Max. load (kg): | 1500 |
Brake (F/R): | Drum/Drum |
Starting system: | Electrical/Manual pull |
Tire size (F/R): | 5.00-12 |
Transmission: | Shaft |
Ground clearance (mm): | 180 |
Rated Max.speed (km/h): | 65 |
Fuel Consumption (L/100km): | 4 |
Choices you can make :
Engine Optional | Model: water cooled; both air and water cooled |
Displacement Choice: 200cc;250cc | |
Low speed, high power, large torque | |
Cargo box Optional | Cargo box length can be chosen from 1.8m to 2.2m |
Model: Normal pattern; Strengthed pattern; Flower pattern | |
Tire Optional | 5.00-12 ;5.50-13 |
Rear axle Optional | Normal rear axle---used for flat road condition and normally used to load light goods; |
Car normal rear axle---used for downslope condition, for loading heavier goods; | |
Boosting rear axle---used for grade climbing; loading heaviest goods on rough and mountainous road | |
Optional parts | 1.Driver Cabin 2.MP3; 3.spare tyre; 4.jack; 5.tail light cover; 6.rear canvas |
CKD Packing and loading :
The packing and loading Method is also very important for the cargo motor tricycle. If pack and load well and there's no waste for container space, one 40HQ can load much more qty to save shipping and tax cost for buyers. So CKD packing for tricycle is recommended first.
