Product Details:
Payment & Shipping Terms:
|
| Displacement: | 150cc. 200cc | Brake: | Drum/ Drum |
|---|---|---|---|
| Battery: | 9A | Loading Capaclity: | 600 KG |
| Max Speed: | 60 Km/h | Brake System: | Drum/Drum |
| Packing Method: | CKD | Fuel Consumption: | 3.5L/100km |
| High Light: | chinese 3 wheel motorcycle,chinese cargo trike |
||

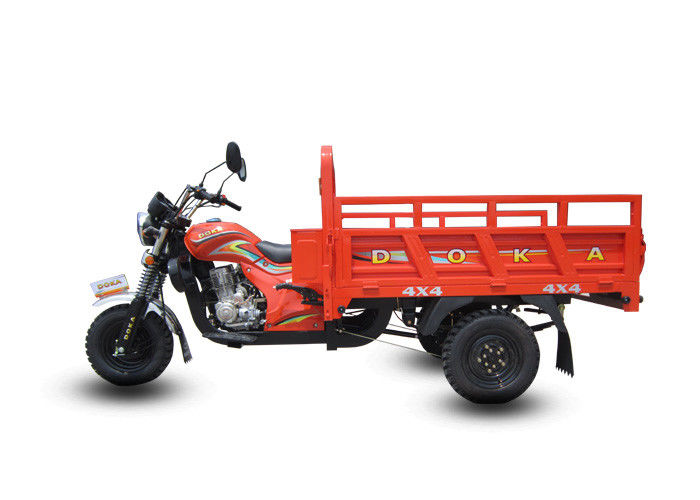

Chinese 150CC Air Cooling Motorized Cargo Tricycle with Light Cargo Box, Car Rear Axle
Main features:
1. Engine: 150cc air cooling engine, 4 strokes. single cylinder. can be changed to 175cc 200cc 250cc
2. Tires: 4.50-12, can be changed 5.00-12

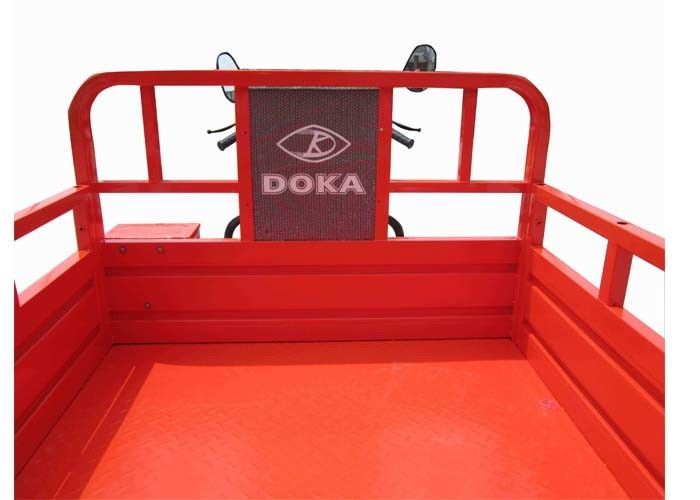

3. Cargo box: 1.7*1.25m. can be changed to1.8*1.25m. 2.0*1.25m

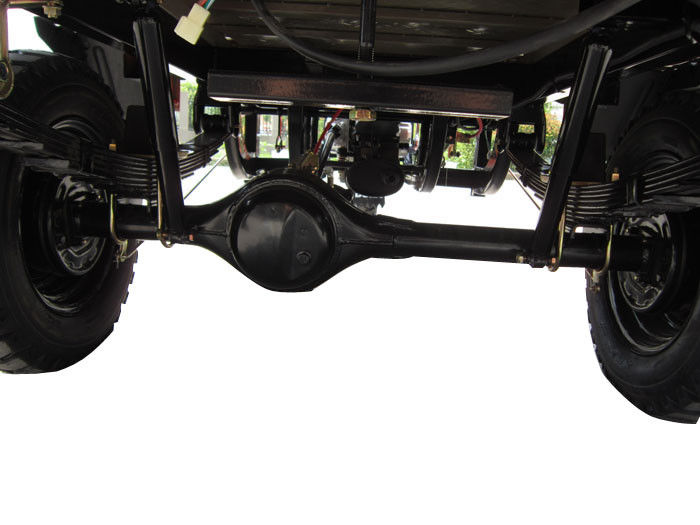

4. Rear axle: car rear axle. can be changed to the normal axle. car axle with booster.
Advantages:
1. 43# strengthed shock with round headlight is the cleanest and generous design for attracting customers at first sight.
2. Well designed base structure can satisfy various road condition and make driving more comfortable;
3. Electro-painted cargo box and chassis can guarantee the tricycle to be far away from rusty, which is our factory specific advantage
4. Our customized 150cc air cooling engine can guarantee good performance even in hot areas.
Technical Specification:
| Technical Specification: | |
| Model: | HH150ZH-H |
| Engine Type: | 4 Stroke, single cylinder, air-cooled |
| Displacement(ml): | 144.6 |
| Compression ratio: | 9.0:1 |
| Max. power & rotating speed: | 9.0kw/7500 r/min±300 r/min |
| Rated .power & rotating speed: | 8.5kw/7500r/min±300r/min |
| Max. torque & rotating speed: | 11N.m/6500r/min±225r/min |
| Ignition: | CDI |
| Fuel: | RQ-90 |
| Dimension (L*W*H): | 3200*1250*1360 |
| Net weight (kg): | 300 |
| Rated Max. load (kg): | 800 |
| Brake (F/R): | Drum/Drum |
| Starting system: | Electrical/Manual pull |
| Tire size (F/R): | 4.50-12 |
| Transmission: | Shaft |
| Ground clearance (mm): | 180 |
| Rated Max.speed (km/h): | 60 |
| Fuel Consumption (L/100km): | 3.5 |
D/ CKD Packing and loading :
