Steel Frame Shaft Drive Motorized 3 Wheel Cargo Motorcycle

Steel Frame Shaft Drive Motorized 3 Wheel Cargo Motorcycle
Steel Frame Shaft Drive Motorized 3 Wheel Cargo Motorcycle Steel Frame Shaft Drive Motorized 3 Wheel Cargo Motorcycle Steel Frame Shaft Drive Motorized 3 Wheel Cargo Motorcycle Steel Frame Shaft Drive Motorized 3 Wheel Cargo Motorcycle

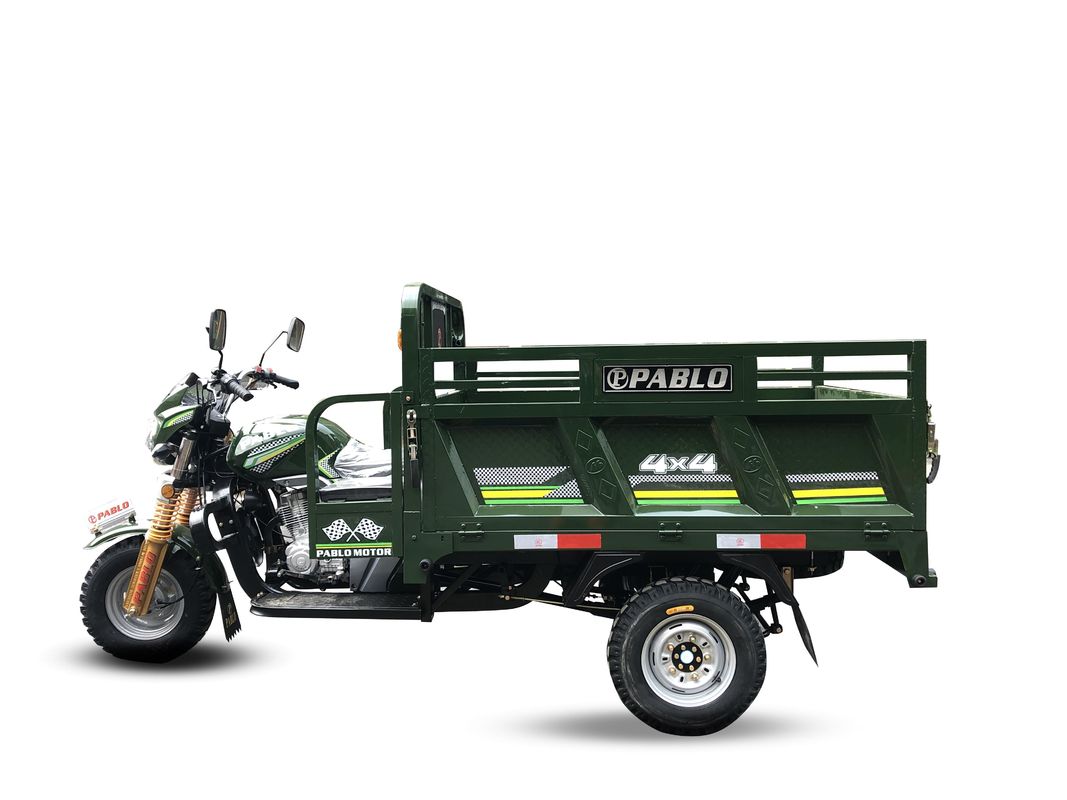

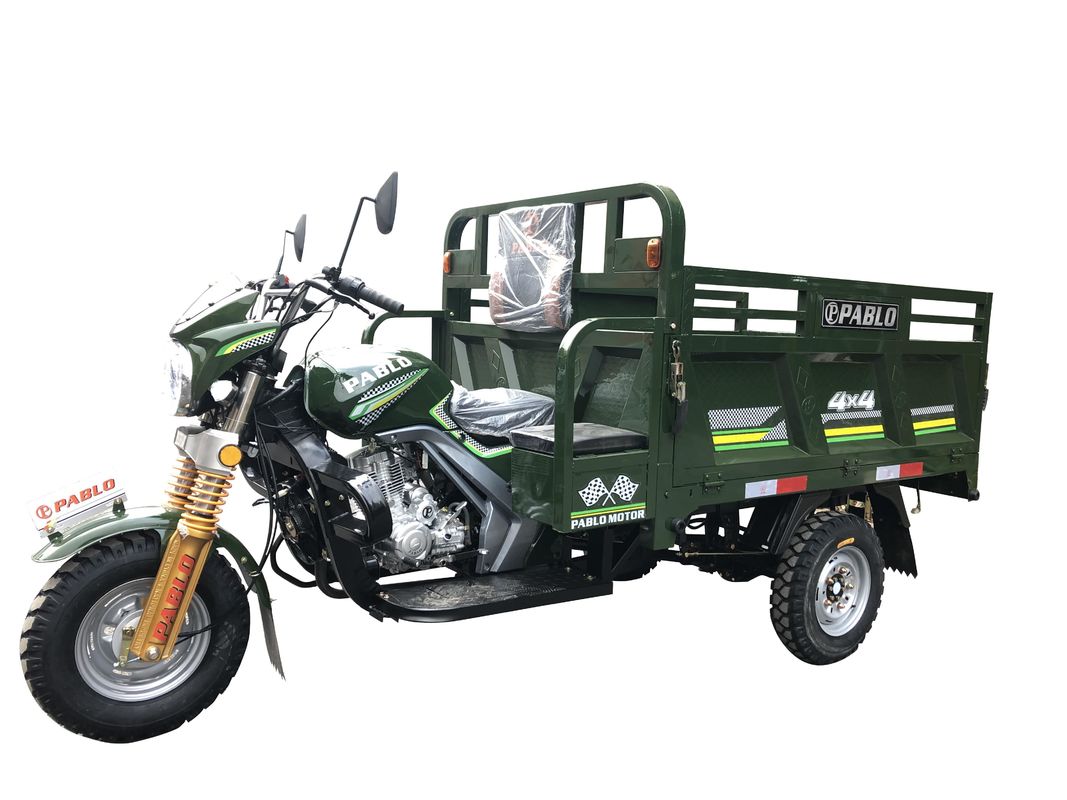

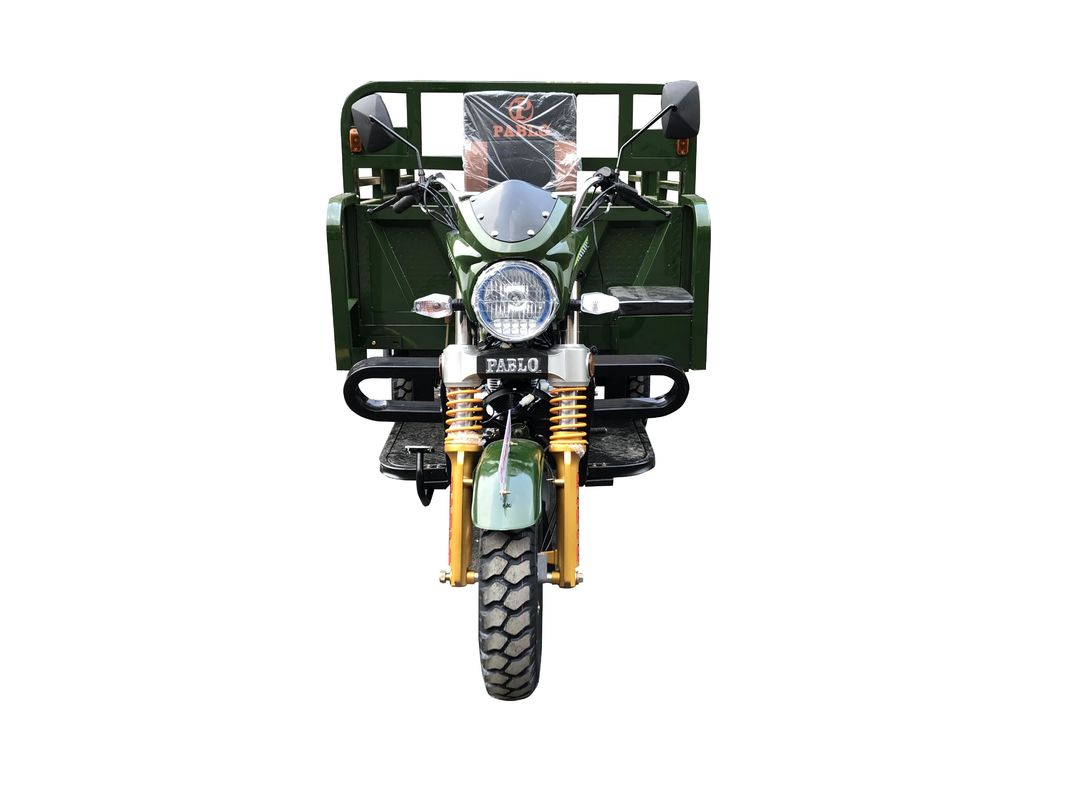

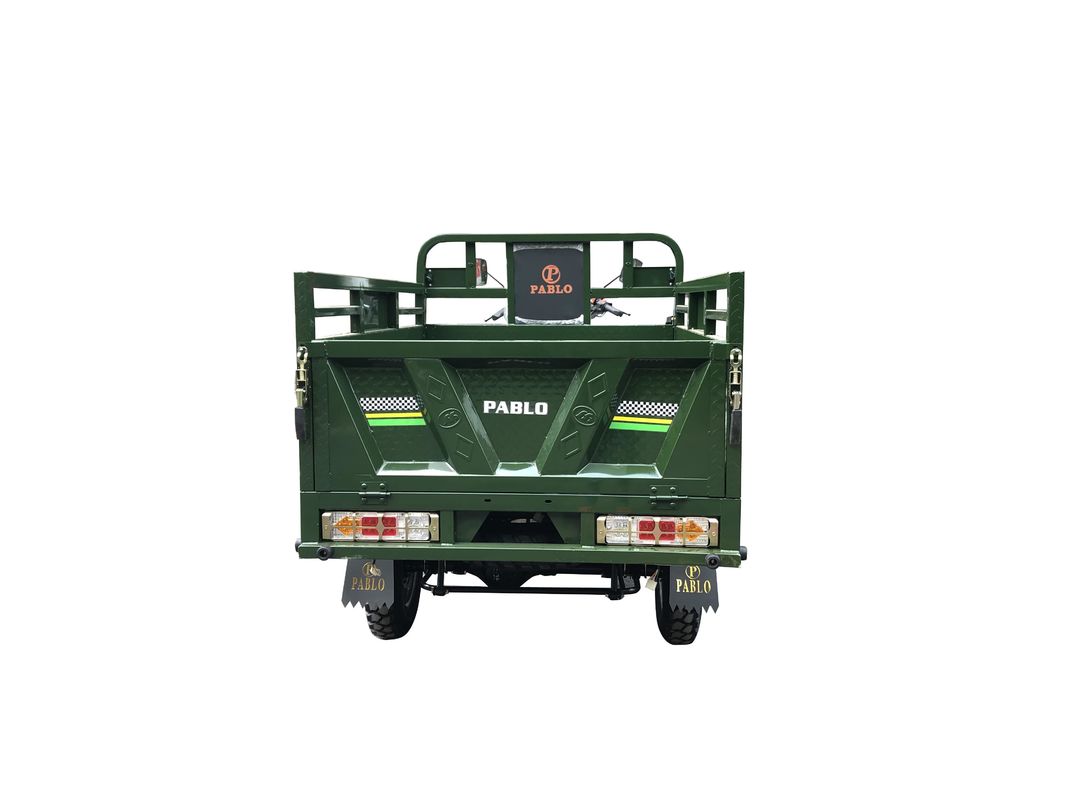

Large Image :  Steel Frame Shaft Drive Motorized 3 Wheel Cargo Motorcycle

Product Details:
Place of Origin: Chongqing, China (Mainland)
Brand Name: HUANGHE
Certification: CCC.ISO9001
Model Number: HH150ZH
Payment & Shipping Terms:
Minimum Order Quantity: 20 units
Packaging Details: CKD and SKD packing method
Delivery Time: 25 Working days
Payment Terms: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Supply Ability: 6000 units per Month
Detailed Product Description
Use For: Cargo Driving Type: Motorized
Displacement: 150cc Body Type: Open
Size: 1700*1250mm Battery: 12v 9ah
Color: As Per Your Requirement Loading Capacity: More Than 800kg
High Light:

150cc 3 Wheel Cargo Motorcycle

,

Shaft Drive 150cc Cargo Tricycle

,

Steel Frame 150cc Cargo Tricycle

Shaft Drive Motorized 3 Wheel Cargo Motorcycle with Steel Frame and Car Axle for Peru Market



Quick Details

  • Brake:good high brake performance.
  • Engine:low speed , high power, large torque.Zongshen / Lifang engine with good performance and quality
  • Rear axle:the technology is the same as car rear axle, very stronger and durablr.
  • Cargo box: electro-coating and pickling phosphating technology to protect cargo box from rust.With high strength steel structure to fully resist the impact while loading.
  • All our products get through the CCC and ISO9001 CERTIFICATE.



Recommend Advantages:

  •  Most economical and practical model. Loading more than 2000Kgs.
  •   More suitable for: Retails; Express; Carry heavy cargos, Farming use, etc.
  • Good appearance, good quality with reasonable price.
  •  Changeable accessories options to meet your real demand.
Technical Details:
Model: HH150ZH
Engine Type: 4 Stroke, single cylinder, water-cooled
Displacement(ml): 149
Compression ratio: 9.2:1
Max. power & rotating speed: 9.5/7500 Kw/rpm±300r/min
Rated .power & rotating speed: 9.0kw/7500r/min±300r/min
Max. torque & rotating speed: 10.8/7500 N.m/rpm±225r/min
Idle speed: 1400rpm
Ignition: CDI
Fuel: RQ-90
Dimension (L*W*H): 3400*1300*1360
Net weight (kg): 350
Rated Max. load (kg): 800
Brake (F/R): Drum/Drum
Starting system: Electrical/Manual pull
Tire size (F/R): 4.50-12
Transmission: Shaft
Ground clearance (mm): 180
Rated Max.speed (km/h): 65
Fuel Consumption (L/100km): 3.5



Package:

SKD,CKD AS PER CUSTOMER REQUIREMENTS



FAQ



1. Payment term?

A: T/T or L/C.  Other ways are also can be considered.



2. Delivery time?

A: 15-20 days.

Since we produce the big chassis and cargo box by ourselves, our factory can ensure the quickest delivery time. Normally we can delivery within 20 days after receiving the deposit.



3. MOQ?

A: One 20ft container of loading about 15-20 units.



4. What's your warranty term?

A: We normally offer 1% free spare parts for after-sale service.



5.Are there any Service center ?

A:We have service center in Africa. Since we have warehouse there, it is more convenient for u to see sample tricycle. What's more, we can handle assembly and provide trainings for your workers in time.
