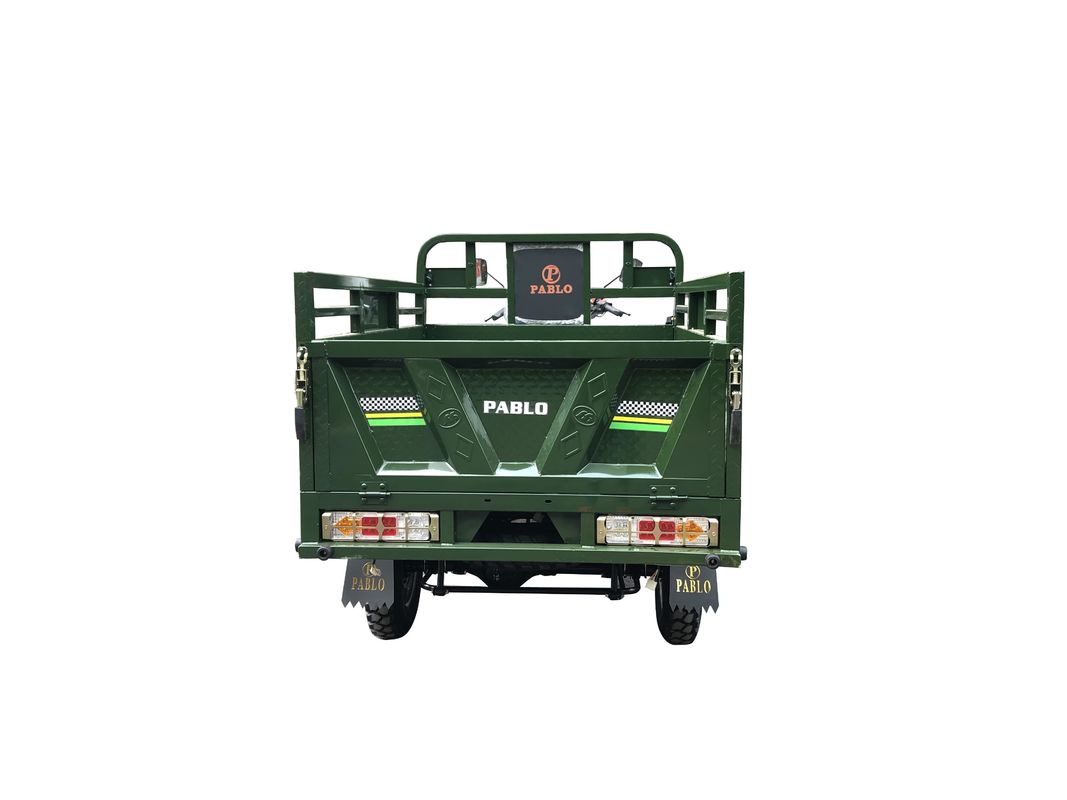

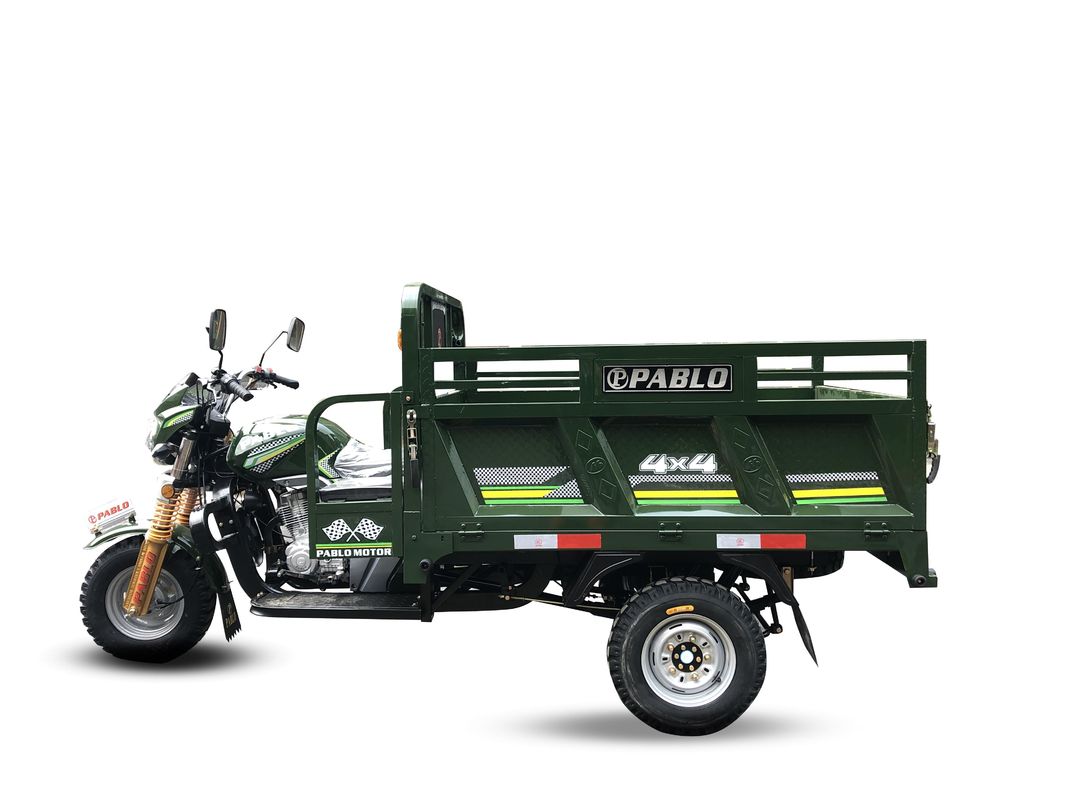

Three Wheeler 1500KG Loading Army 200CC Cargo Tricycle

Three Wheeler 1500KG Loading Army 200CC Cargo Tricycle

200CC Cargo Tricycle

1500KG Loading Cargo Tricycle

Army Cargo Tricycle

Place of Origin:

CHONGQING,CHINA

Brand Name:

HUANGHE,DOKA,Edicanfo

Certification:

EEC,CCC,ISO,

Model Number:

HH200ZH-3

Contact Us
Request a Quote
Product Details
Product Name:
Army 200CC Cargo Tricycle
Material:
Iron,steel,plastic
Displacement:
200cc
Transimission:
Shaft
Battery:
9A/18A
Loading Capaclity:
1500KG
Max Speed:
65 Km/h
Brake System:
Drum/Drum
Highlight:

200CC Cargo Tricycle

,

1500KG Loading Cargo Tricycle

,

Army Cargo Tricycle

Payment & Shipping Terms
Minimum Order Quantity
1*20GP of loading 18 Units
Price
USD850-1050 Per Unit
Packaging Details
CKD and SKD packing method
Delivery Time
25 Working days
Payment Terms
T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Supply Ability
6000 units per Month
Product Description

Army 200CC Cargo Tricycle , Fuel Three Wheeler Cargo







All parts alternative and changeable

we accept private customization

All three wheel taxi specifications are approximate; any other sizes are available according to customers' special requests ,any details of the motor tricycle should subject to our final confirmation .







Recommend Reasons:

  • 50# strengthed or double spring front shock is durable and strong
  • Well designed base structure can satisfy various road condition and make driving more comformtable;
  • Electro-painted cargo box and chassis can guarantee the tricycle be to far away from rusty,which is our factory speficic advantage
  • Our customized 200cc water cooling engine can gurantee good performance with heavy loading goods even in hot area

Models can be designed according to market requirments:

1.Color options:
Blue,Army Green,Red etc.
2.Engine options:
Water cooled Engine :150cc,200cc,250cc
3.Cargo box options:
1.25m*1.7m/1.25m*1.8m/1.3m*2.0m
4.Rear axle options:
Auto rear axle ,Boosting rear axle etc.



D/ Technical Parameter:



Technical Specification:
Model: HH200ZH-3
Engine Type: 4 Stroke, single cylinder, water-cooled
Displacement(ml): 197
Compression ratio: 9.2:1
Max. power & rotating speed: 10.6kw/7500 r/min±300 r/min
Rated .power & rotating speed: 10.0kw/7500r/min±300r/min
Max. torque & rotating speed: 13.5N.m/6500r/min±225r/min
Idle speed: 1400rpm
Ignition: CDI
Fuel: RQ-90
Dimension (L*W*H): 3300*1300*1360
Net weight (kg): 350
Rated Max. load (kg): 1000
Brake (F/R): Drum/Drum
Starting system: Electrical/Manual pull
Tire size (F/R): 5.00-12
Transmission: Shaft
Ground clearance (mm): 180
Rated Max.speed (km/h): 65
Fuel Consumption (L/100km): 3.5




D/ CKD Packing and loading :



      Three Wheeler 1500KG Loading Army 200CC Cargo Tricycle 0             Three Wheeler 1500KG Loading Army 200CC Cargo Tricycle 1



FAQ



1.Q: Can I order sample?

A: Yes, we accept sample for trial order.



2. Q: What's the delivery time?

A: It usually takes about 25 to 30 days. But the exact delivery time is different for different order quantity.



3. Q: Which colors will be available?

A: Normally, we will introduce the most popular colors to customers. And we are able to make colors according to customer's demands.



4. Q: Can I use my logo on the product?

A: Yes, we can make the customers' logo on the motorcycle.



5. Q: How to delivery to foreign buyer?

A: For full container order, usually by sea is the best choice.
