Product Details:
Payment & Shipping Terms:
|
Use For: | Cargo | Driving Type: | Motorized |
---|---|---|---|
Displacement: | 111 - 150cc, 151 - 200cc | Body Type: | Open |
Size: | 3600*1250*1360 | Color: | Customize |
Condition: | New | Made In: | China |
Year: | 2015 | Fuel: | Gas / Petrol |
Certificate: | Ccc&ISO9001 | Name: | China 150cc Tricycle 3 Wheel Motorcycle 2015 New Design 150ZH-H |
High Light: | 150cc Three Wheel Cargo Motorcycle,Motorized Three Wheel Cargo Motorcycle,Air Cooled Cargo Motorcycle |

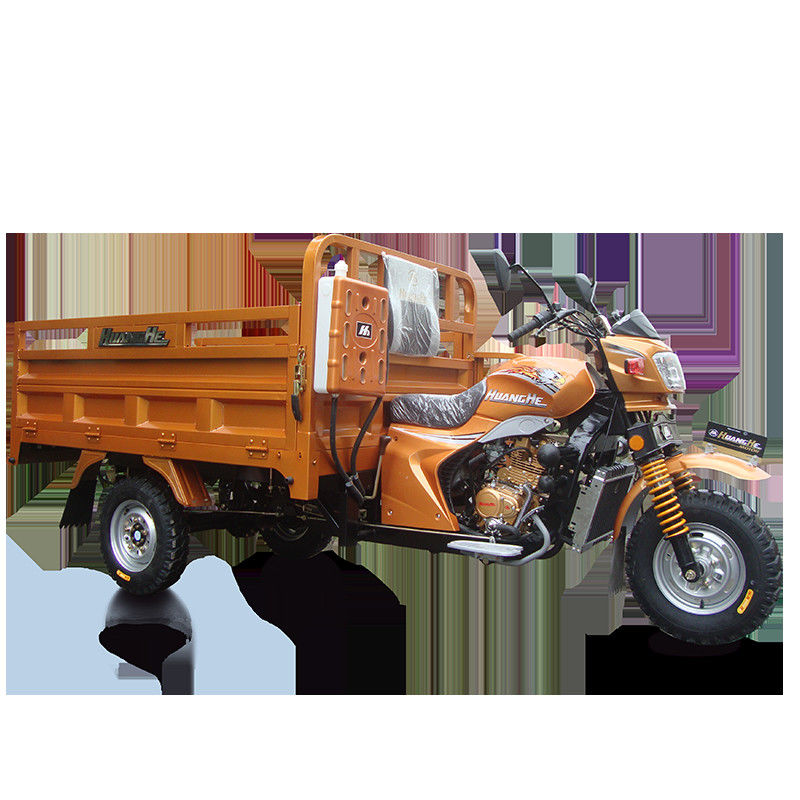

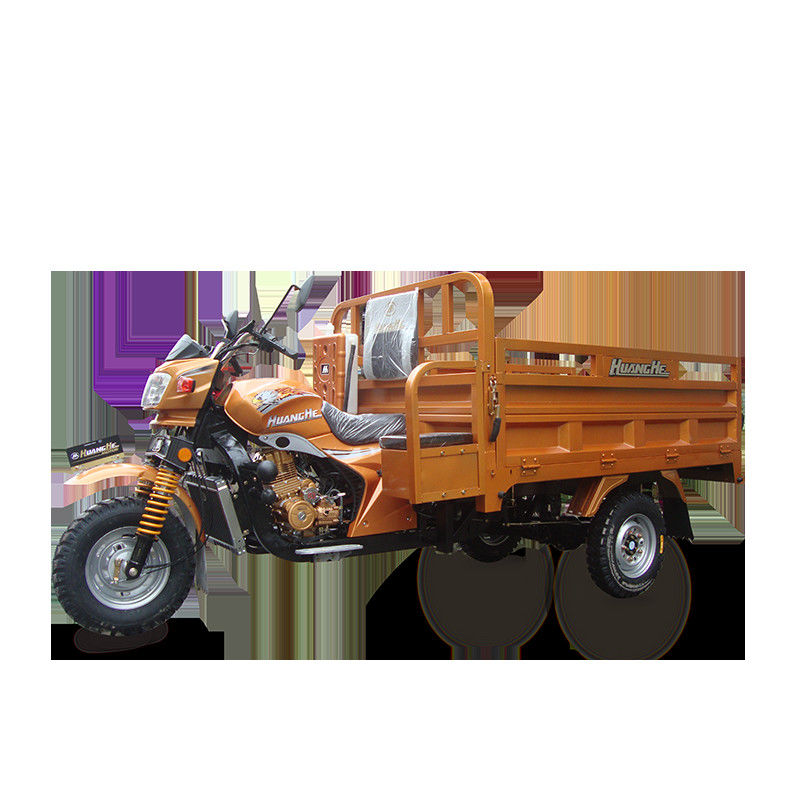

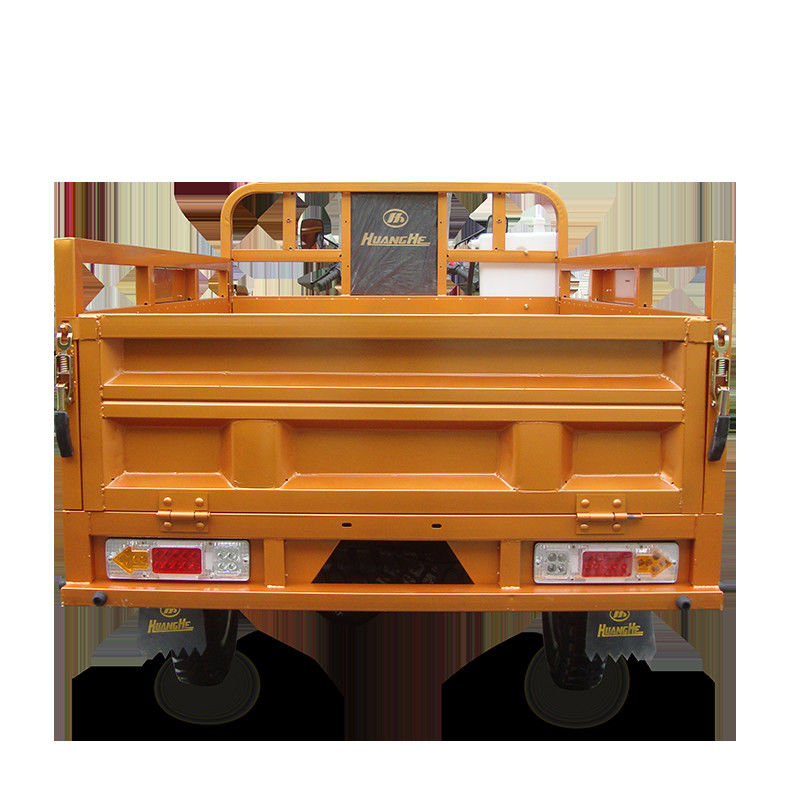

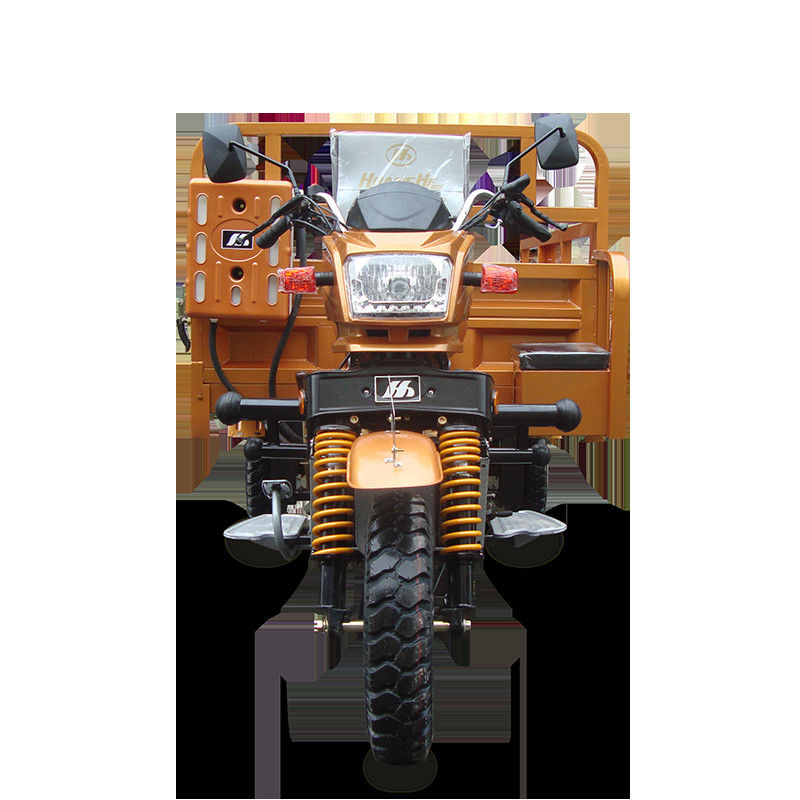

Cargo Trike China Three Wheel Cargo Motorcycle 150cc Gas / Petrol Fuel
Specifications
3 wheel Cargo tricycles for heaving loading under rough roads. Three same wheels with new style fuel tank and F. shock absorber
The popular model in the Africa market, simple appearance with cheap price.
cargo tricycle for adults Specification: |
|
Specification: |
150cc |
Engine Type: |
4 Stroke, single cylinder, air-cooled |
Displacement(ml): |
144.6 |
Compression ratio: |
9:1 |
Max. power rotating speed: |
9.0kw/9000 r/min±300 r/min |
Rated .power rotating speed: |
8.5kw/9000r/min±300r/min |
Max. torque rotating speed: |
11.0N.m/7500r/min±225r/min |
Idle speed: |
1420rpm |
Ignition: |
CDI |
Fuel: |
RQ-90 |
Dimension (L*W*H): |
3000*1250*1360 |
net weight (kg): |
260 |
Max load (kg): |
300 |
Brake (F/R): |
Drum/Drum |
Starting system: |
Electrical/Manual pull |
Tire size (F/R): |
4.5-12 |
chassis: |
40*80mm |
Transmission: |
Shaft |
Ground clearance (mm): |
180 |
Wheelbase (mm): |
1970 |
light: |
square headlight. |
mirrors: |
plastic mirrors. |
box: |
tipper cargo box. |
shock absorber: |
special European shock absorber |
Loading Qty(40HQ): |
50 pcs |
other |
footrester. |
big back rester. |
|
common rear axle. |
|
options: |
big toolbox. car rear axle. spare tire, jack |
acid pickling and phosphating bath
Acid pickling and phosphating process strengthen lacquer adhesion, making the lacquer bright and wear-resistant.
electrophoresis dipping process paint, non-corrosion ability is outstanding, ensure color durability.
Striking gently can not break the lacquer
burning sun can not destroy the lacquer
Cargo box workshop
With the help of folding machine, lath machine and trigger squeeze, we improve our work effective.
Experiment room
Adjusting air intake and exhaust accurately to arrive at national standard and reduce gasoline consumption.
According to customers' finger, optimize some parts such as kick starter, the handlebar can provide comfortable driving.
Researching and developing the new engine bracket reduce vibration and prolong its life.
Packging
Normally, our tricycles take SKD / CKD and carton packaging.
Different parts with different packaging methods.
If you have special requirements, please mention that in advance.
Please see our main packaging methods as following:
