Place of Origin:
Chongqing, China (Mainland)
Brand Name:
huanghe
Certification:
CCC;ISO9001;SONCAP
Model Number:
200ZH-B

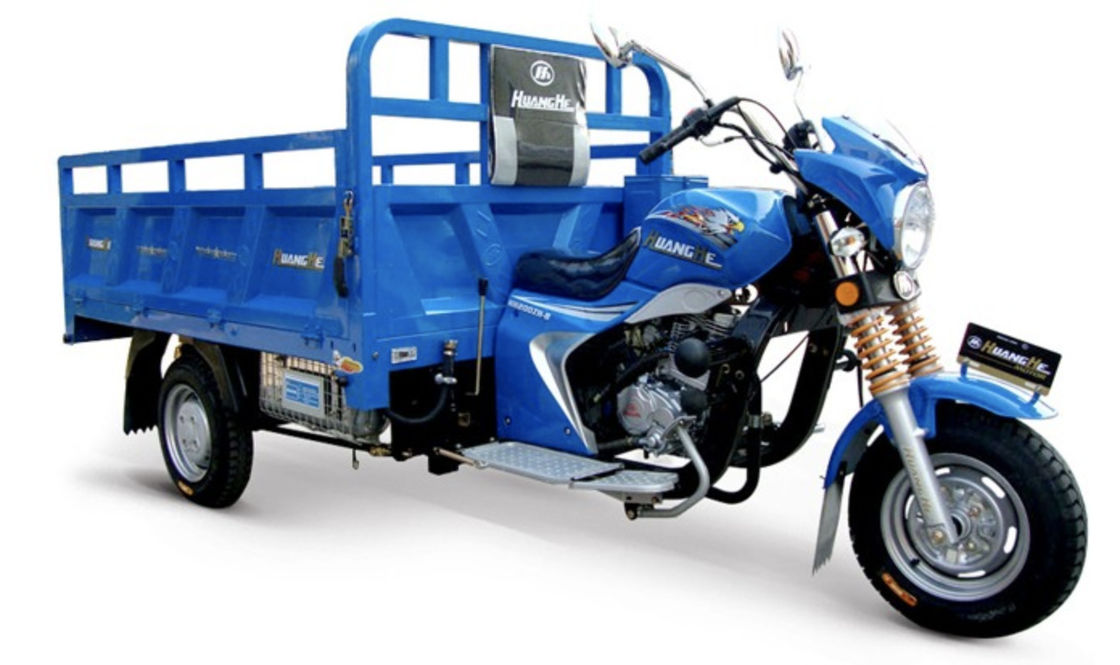

3 wheel China Cargo tricycles for heaving loading under rough roads. Three same wheels with new style fuel tank and F. shock absorber
most popular model in Africa market,simple appearance with cheap price.
| Specification:200cc | |||||
| Engine Type: 4 Stroke, single cylinder, air-cooled | |||||
| Displacement(ml):197 | |||||
| Compression ratio:9.2:1 | |||||
| Max. power & rotating speed: 10.6kw/7500 r/min±300 r/min | |||||
| Rated .power & rotating speed:10.0kw/7500r/min±300r/min | |||||
| Max. torque & rotating speed:13.5N.m/6500r/min±225r/min | |||||
| Idle speed: 1400rpm | |||||
| Ignition: CDI | |||||
| Fuel: RQ-90 | |||||
| Dimension (L*W*H):3000*1250*1360 | |||||
| Net weight (kg):320 | |||||
| Rated Max. load (kg): 350 | |||||
| Brake (F/R): Drum/Drum | |||||
| Starting system: Electrical/Manual pull | |||||
| Tire size (F/R): 4.50-12 | |||||
| Transmission: Shaft | |||||
| Ground clearance (mm):180 | |||||
| Wheelbase (mm): 1970 | |||||
| Rated Max.speed (km/h): 60 |
Factory
acid pickling and phosphating bath
Acid pickling and phosphating process strenghen larquer adhesion ,making the larquer brigh and wear-resistant. electrophoresis dipping process paint ,non-corrsion ability is outstanding ,ensure color durability.
Striking gently can not break the lacquer
buring sun can not destroy lacquer
Cargo box workshop
With the help of floding machine ,lath machine and trigger squeeze , we improve our work effictive.
Experiment room
Adjusting air intake and exhaust accurately to arrive national standerd and reduce gasoline consumption.
According to customer's finger ,optimise some parts such as kick starter ,handle bar can provide a comfortable driving .
Researching and developng new engine bracket reduce viberation and prolong its life.
Packging
Normally, our tricycles take SKD / CKD and carton packaging. Different parts with different packaging methods. If you have special requirements, please mention that in advance. Please see our main packaging methods as following:
