Product Details:
Payment & Shipping Terms:
|
Transimission: | Shaft | Color Choice: | Golden,Blue,Orange, |
---|---|---|---|
Battery: | 9A/18A | Loading Capaclity: | 1500 KG |
Max Speed: | 65 Km/h | Brake System: | Drum/Drum |
High Light: | chinese three wheel motorcycle,tricycle with cargo box |

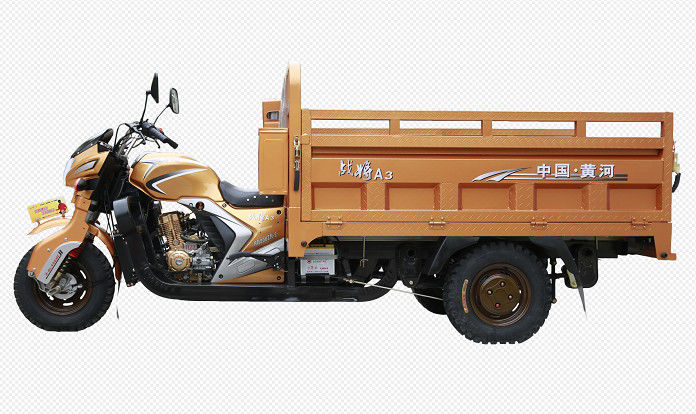

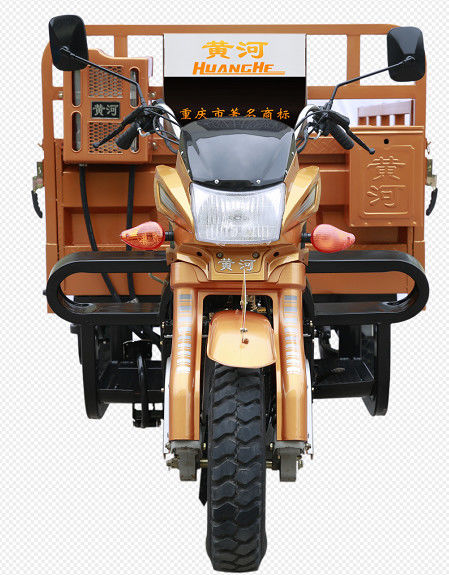

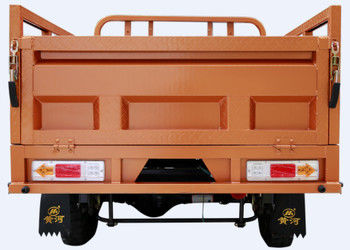

Water Cooling Fuel 200cc Cargo Motor Tricycle with Strengthed Delivery Van for Heavy Loading
A/Description:
B/ Recommend Reasons:
C/ Technical Specification:
Technical Parameter: | |
Model: | HH200ZH-A3 |
Engine Type: | 4 Stroke, single cylinder, water-cooled |
Displacement(ml): | 197 |
Compression ratio: | 9.2:1 |
Max. power & rotating speed: | 10.6kw/7500 r/min±300 r/min |
Rated .power & rotating speed: | 10.0kw/7500r/min±300r/min |
Max. torque & rotating speed: | 13.5N.m/6500r/min±225r/min |
Idle speed: | 1400rpm |
Ignition: | CDI |
Fuel: | RQ-90 |
Dimension (L*W*H): | 3300*1300*1360 |
Net weight (kg): | 380 |
Rated Max. load (kg): | 1000 |
Brake (F/R): | Drum/Drum |
Starting system: | Electrical/Manual pull |
Tire size (F/R): | 5.00-12 |
Transmission: | Shaft |
Ground clearance (mm): | 180 |
Rated Max.speed (km/h): | 65 |
Fuel Consumption (L/100km): | 3.8 |
D/ CKD Packing and loading :
Packing and loading Method is also very important for cargo motor tricycle.If pack and load well and there's no waste for container space, one 40HQ can load much more qty to save shipping and tax cost for buyers.So CKD packing for tricycle is recommended first.
