150CC Three Wheel Motorized Cargo Motorcycle with Double Layer Cargo Box

150CC Three Wheel Motorized Cargo Motorcycle with Double Layer Cargo Box

chinese 3 wheel motorcycle

chinese cargo trike

Place of Origin:

Chongqing, China (Mainland)

Brand Name:

HUANGHE,DOKA

Certification:

CCC;ISO9001

Model Number:

HH150ZH-H

Contact Us
Request a Quote
Product Details
Use For:
Cargo
Driving Type:
Motorized
Displacement:
151 - 200cc
Body Type:
Open
Size:
3500*1250*1360
Tyre:
4.50-12 Three Wheels Can Change With Each Other
Highlight:

chinese 3 wheel motorcycle

,

chinese cargo trike

Payment & Shipping Terms
Minimum Order Quantity
20 units of loading 1*20ft container
Price
| 1 Unit/Units (Min. Order)
Packaging Details
CKD and SKD packing method
Delivery Time
25 Working days
Payment Terms
T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Supply Ability
6000 units per Month
Product Description

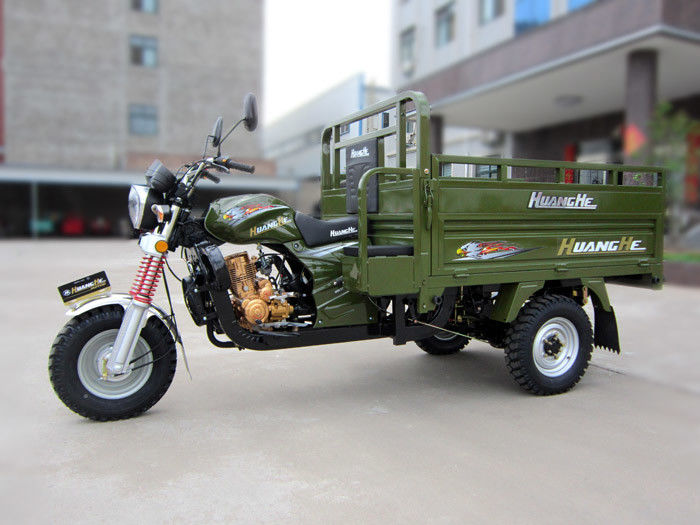

150CC Three Wheel Motorized Cargo Motorcycle with Double Layer Cargo Box for Loading more Goods​



Main Features

  •  Use for cargo transportation. double layer cargo box can load many more goods.
  •  Car rear axle, good performance on rough road.
  •  The multi-functional toolbox can be a passenger seat.









Advantages:

  • All our products get through the CCC and ISO9001 CERTIFICATE.
  • Enjoying top designed matching system to ensure this tricycle has the best performance
  • Rear axle: the technology is the same as car rear axle, very strong and durable
  • Cargo box: Using electro-coating and pickling phosphating technology to protect cargo box from rusty

Technical specification:



Technical Parameter:
Model: HH150ZH-B
Engine Type: 4 Stroke, single-cylinder, air-cooled
Displacement(ml): 144.6
Compression ratio: 9.0:1
Max. power & rotating speed: 9.0kw/7500 r/min±300 r/min
Rated .power & rotating speed: 8.5kw/7500r/min±300r/min
Max. torque & rotating speed: 11N.m/6500r/min±225r/min
Ignition: CDI
Fuel: RQ-90
Dimension (L*W*H): 3200*1250*1360
Net weight (kg): 320
Rated Max. load (kg): 850
Brake (F/R): Drum/Drum
Starting system: Electrical/Manual pull
Tire size (F/R): 4.50-12
Transmission: Shaft
Ground clearance (mm): 180
Rated Max.speed (km/h): 60
Fuel Consumption (L/100km): 3.5





Optional Parts:



Engine Optional Model: air-cooled; water cooled; both air and water cooled
Displacement Choice:150cc;200cc;250cc
Low speed, high power, large torque

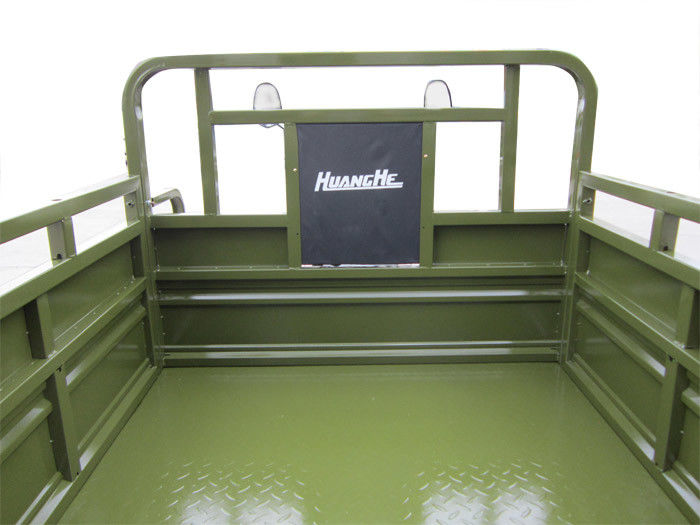

Cargo box Optional Cargo box length can be chosen from 1.5m to 2.2m
Model: Normal pattern; Strengthed pattern; Flower pattern

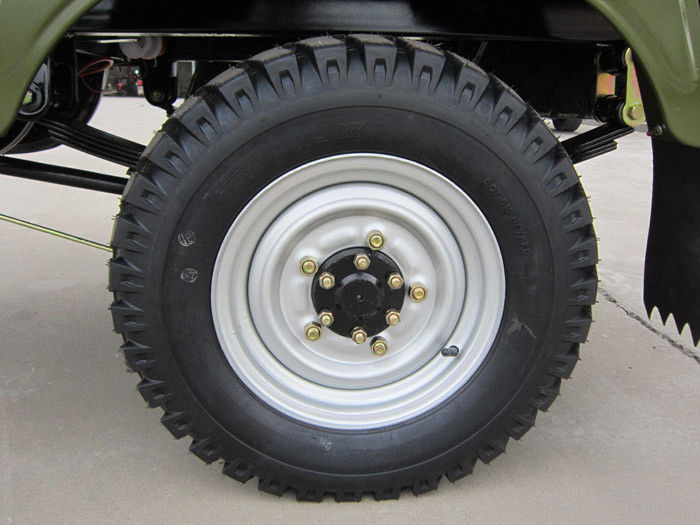

Tire Optional 4.50-12; 5.00-12 ;5.50-13

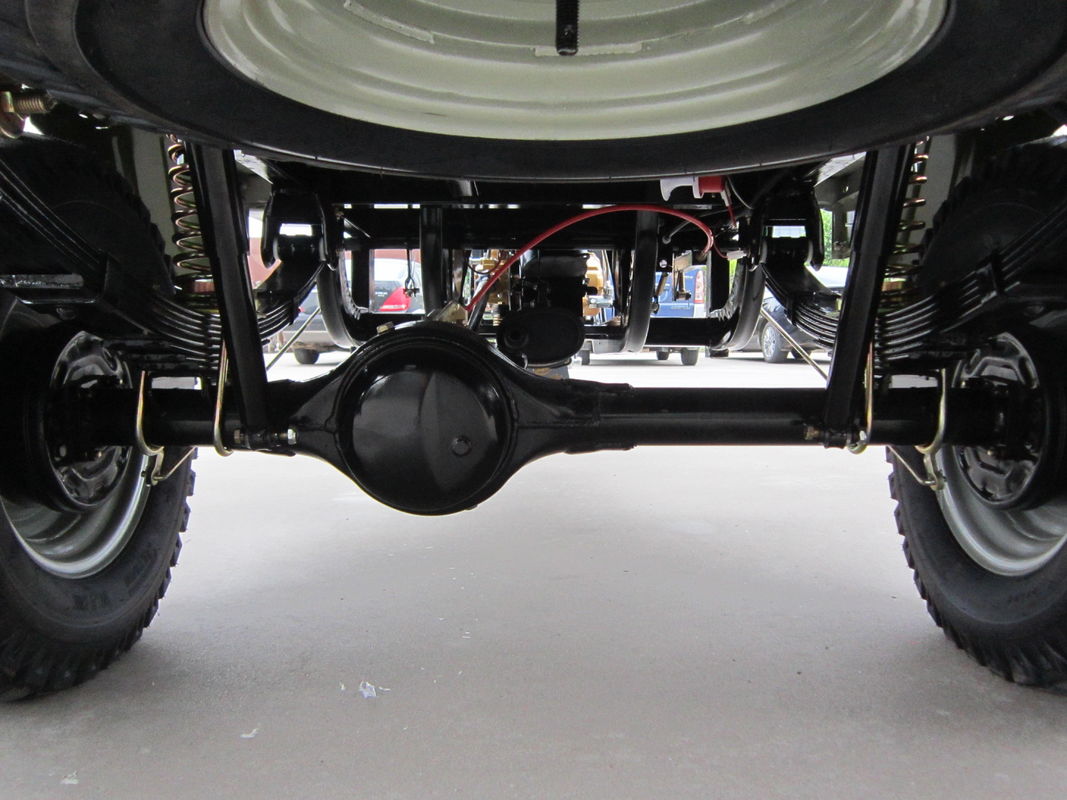

Rear axle Optional Normal rear axle---used for flat road condition and normally used to load light goods;
Car normal rear axle---used for the downslope condition, for loading heavier goods;
Boosting rear axle---used for grade climbing; loading heaviest goods on rough and mountainous road
Optional parts 1.front hood cover; 2.fan; 3.MP3; 4.spare tyre; 5.jack; 6.tail light cover; 7.rear canvas 8. Driver Cabin





SKD,CKD AS PER CUSTOMER REQUIREMENTS



150CC Three Wheel Motorized Cargo Motorcycle with Double Layer Cargo Box 0





FAQ

1. Payment term?

A: T/T   Other ways are also can be considered.

2. Delivery time?

A: 15-20 days.  urgent order is acceptable.

3. MOQ?

A: 20 Set.  But we suggest that you can buy a container of it, which is more cost-effective.

4. Package information?

A: CKD/SKD ;20GP container : 20sets ;40GP container: 48 sets.

5. What's your warranty term?

A: We offer different warranty time for different products. Pls contact us to get detailed information.

6: Will you deliver right goods as we ordered? How can I trust you?

A: Yes, we will. We believe that honesty and credit is the key to build a nice and long-term business relationship. Our company is Alibaba's Gold suppliers and we have Trade Assurance $56,000.

7.Price?

A:We are a manufacture and trading company with competitive prices, distinct appearance.

8.Service center in Africa?

A:We have service center in Africa to help you develop business and make money. Since we have a storehouse in there, it is more convenient for u to see sample tricycle.What's more, we can solve assemble and quality problem in time.
