Product Details:
Payment & Shipping Terms:
|
| Model: | Open | Year: | 2019 |
|---|---|---|---|
| Fuel: | Gas/Petrol | Gear Box: | Automatic |
| Drive: | Shaft Drive | ||
| High Light: | chinese three wheel motorcycle,tricycle with cargo box |
||
Unique Carriage Motorized Cargo Tricycle 200cc Three Wheel Motorcycle exquisite Model for heavy loading.
Motorized Cargo Tricycle 200cc with has below advantages:
1-- Unique carriage is specially desinged for heavy loading hot areas.
2-- Luxury Five wheel model can help users to driver as a truck while with much cheaper price
3-- This motorized tricycle is powerful engouh for adults to load up to 1500kg goods.
4-- With booster rear axle,this motor cargo tricycle can climb mountains easily with heavy loading.
5-- We can ensure to delivery within 20 days after receiving deposit because we produce carriage and frame by ourselves.
6-- 1*40HQ container can carry 38 units with CKD packing method.
7-- With Electrol finishing technology,this model is non-rusty cargo tricycle.
Techinical Paramater:
| 200cc 3 wheel tricycle for passenger Specification: | |
| Specification: | 200cc |
| Engine Type: | 4 Stroke, single cylinder, air-cooled |
| Displacement(ml): | 193.3 |
| Compression ratio: | 9.2:1 |
| Max. power rotating speed: | 10.35kw/9000 r/min±300 r/min |
| Rated .power rotating speed: | 10.25kw/9000r/min±300r/min |
| Max. torque rotating speed: | 13.5N.m/7500r/min±225r/min |
| Idle speed: | 1420rpm |
| Ignition: | CDI |
| Fuel: | RQ-90 |
| Dimension (L*W*H): | 3600*1350*1390 |
| net weight (kg): | 360 |
| Max load (kg): | 1500 |
| Brake (F/R): | Drum/Drum |
| Starting system: | Electrical/Manual pull |
| Tire size (F/R): | 5.00-12 |
| chasis: | 50*100mm |
| Transmission: | Shaft |
| Ground clearance (mm): | 180 |
| Wheelbase (mm): | 1970 |
| light: | square head light. |
| mirrors: | plastic mirrors. |
| box: | higher cargo box. |
| shock absorber: | special double spring shock absorber |
| Loading Qty(40HQ): | 38 pcs |
| other | big footrester. |
| big back rester. | |
| common rear axle. | |
| options: | big tool box. car rear axle. spare tire, jack, cabin |

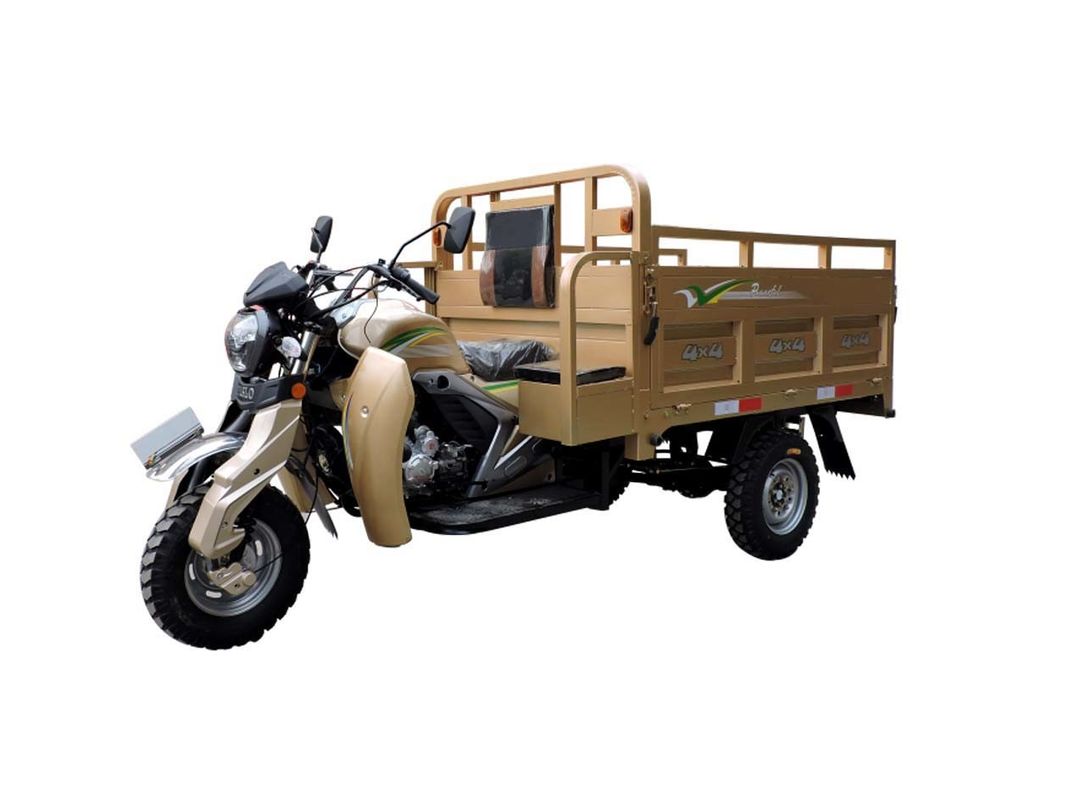

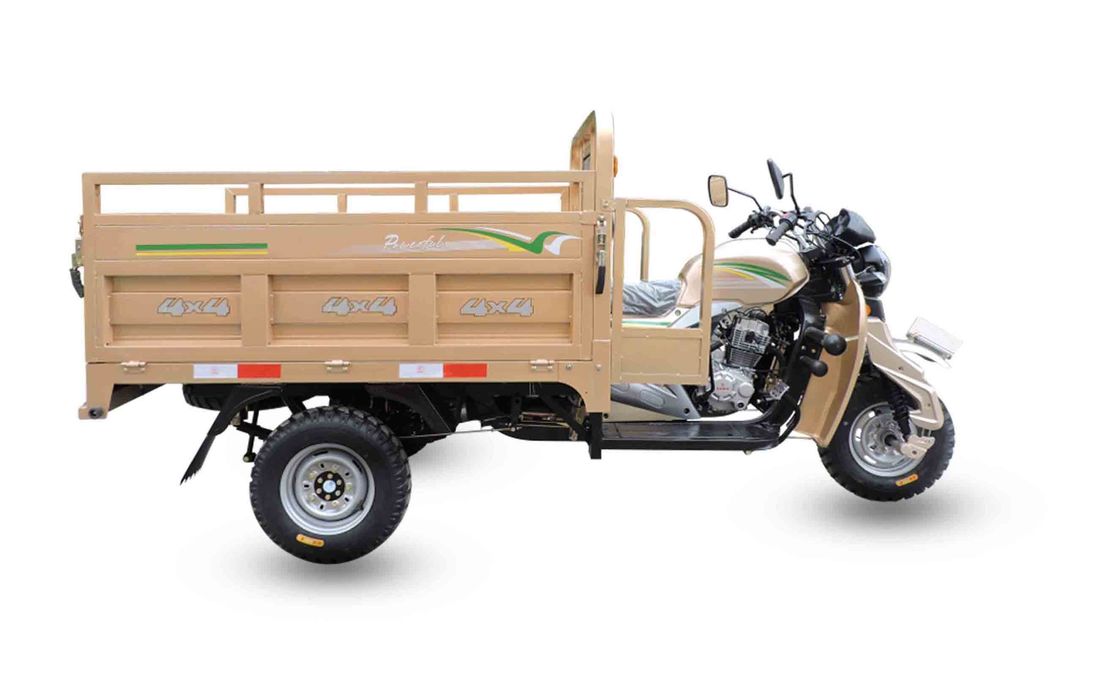

Model Picture of this tricycle water tank maintenance instructions:

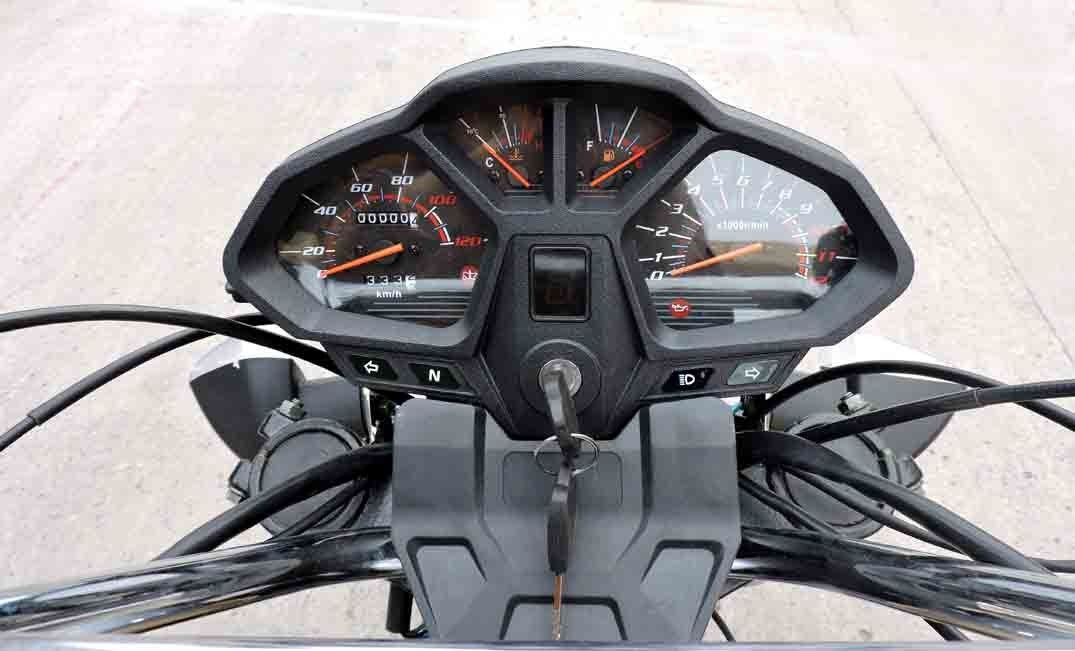

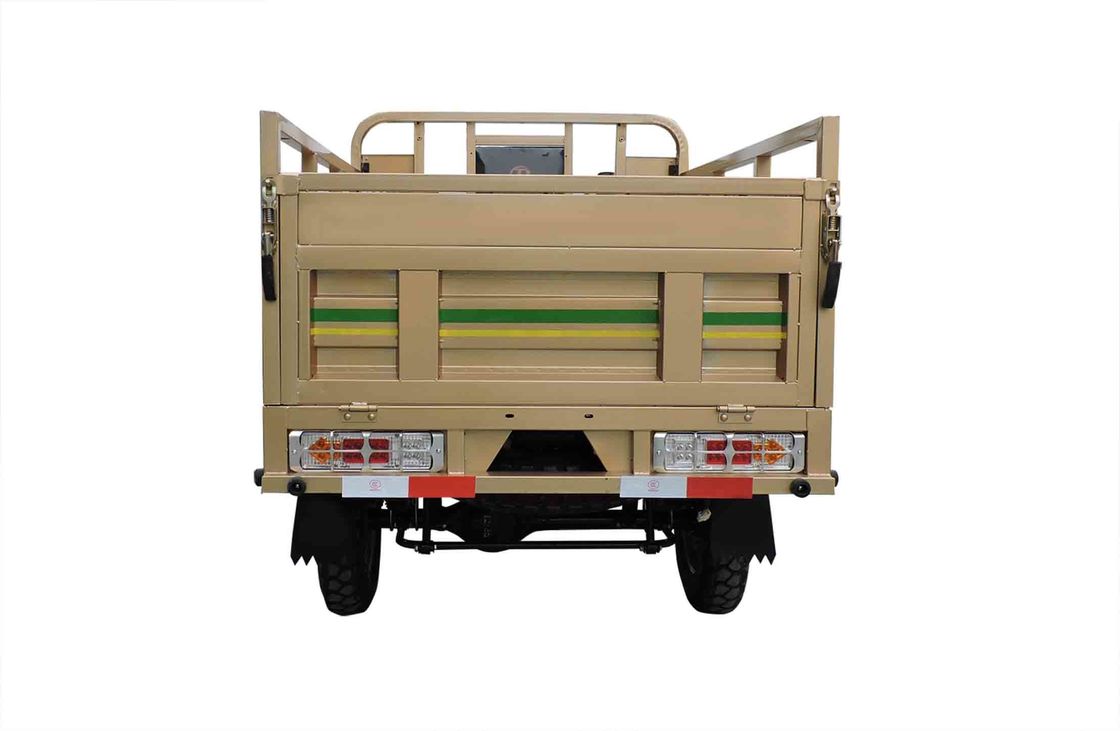

Closer view about the luxury carriage :
Packging and Loading:
Normally, our tricycles take SKD / CKD and carton packaging. Different parts with different packaging methods. If you have special requirements, please mention that in advance. Please see our main packaging and loading methods as below:
